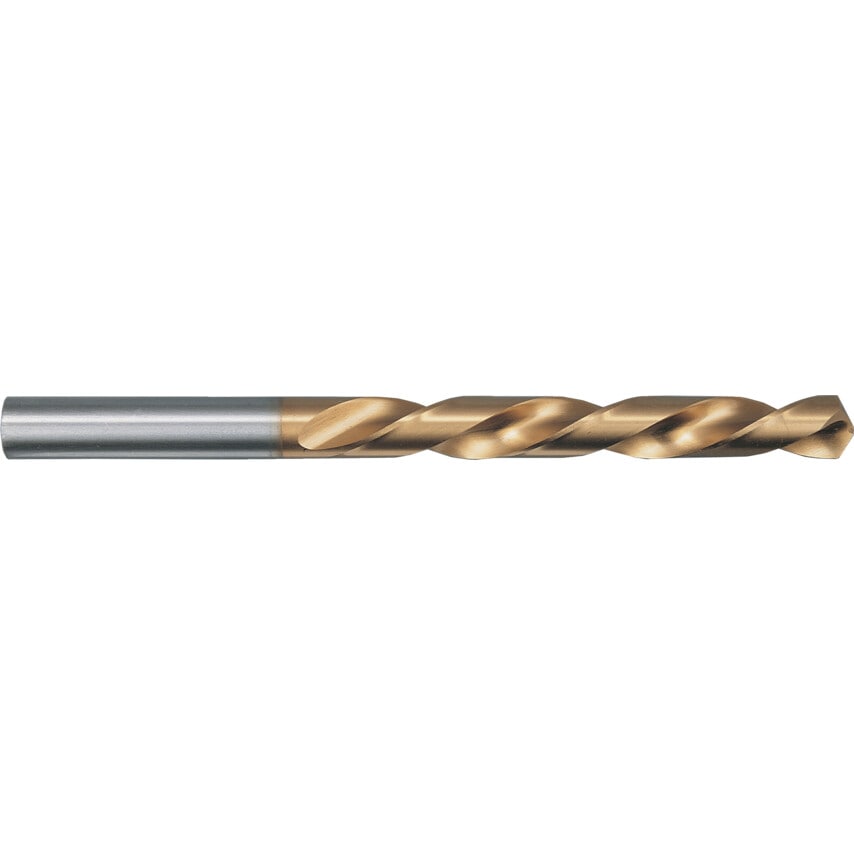

Series 651 HSS straight shank jobber drills metric TiN coated drills. For drilling steel and cast steel, alloyed and unalloyed grey cast iron, spheroidal iron, sintered powder metal, German silver and graphite.
Features and Benefits
High speed steel for improved rigidity
TiN coating for improved heat and wear resistance
Standards
Manufactured to BS 328, DIN338RN
| MFR Part No. | 00651 007.300 |
| Helix Type | Low Helix |
| Finish/Coating | TiN |
| Cutting Direction | Right Hand |
| Standards Met | DIN 338 |
| Drill Diameter Metric | 7.3mm |
| Overall Length | 109mm |
| Point Angle | 118\u00b0 |
| Series | 651 |
| Coolant Delivery | External |
| Flute Construction | Ground flutes |
| Flute Type | Spiral |
| Point Type | Conventional |
| Drill Diameter Tolerance | H8 |
| Material | HSS |
| Number of Flutes | 2 |
| Flute Length | 69mm |
