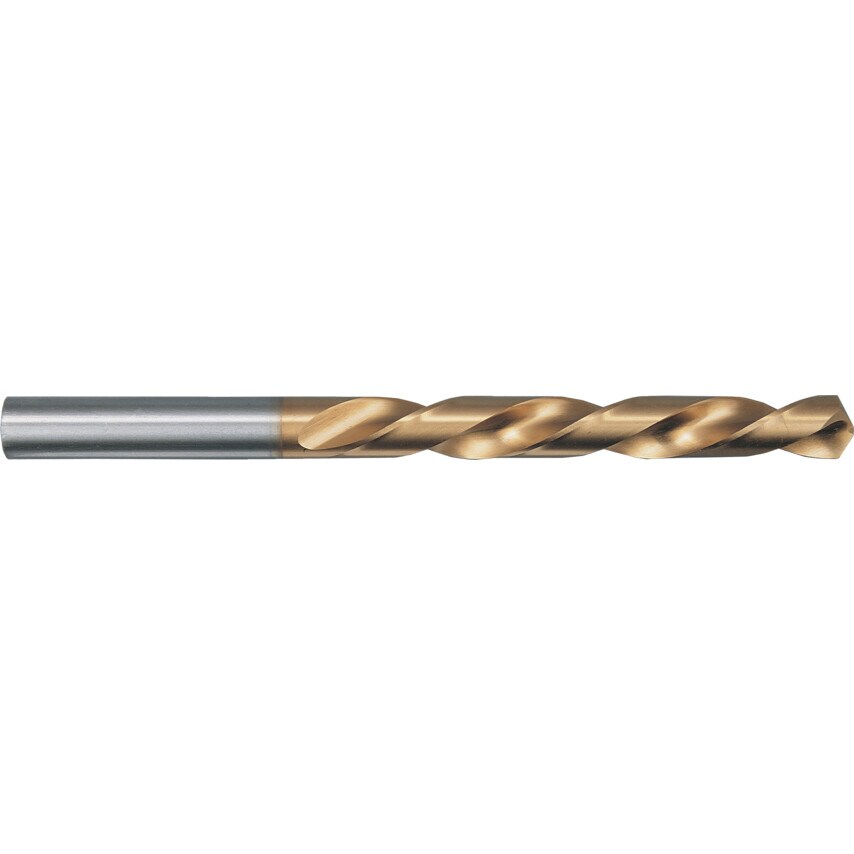

Series 651 HSS straight shank jobber drills metric TiN coated drills. For drilling steel and cast steel, alloyed and unalloyed grey cast iron, spheroidal iron, sintered powder metal, German silver and graphite.
Features and Benefits
High speed steel for improved rigidity
TiN coating for improved heat and wear resistance
Standards
Manufactured to BS 328, DIN338RN
| Drill Diameter Tolerance | H8 |
| Web Thickness | Form A |
| Number of Flutes | 2 |
| Shank Diameter Tolerance | F11 |
| Drill Diameter Gauge | No.15 |
| Coolant Delivery | External |
| Flute Construction | Ground flutes |
| Cutting Direction | Right Hand |
| Overall Length | 80mm |
| Finish/Coating | TiN |
| Point Angle | 118\u00b0 |
| Series | 651 |
| Flute Length | 47mm |
| Flute Type | Spiral |
| Material | HSS |
| Standards Met | DIN 338 |
| MFR Part No. | 00651 004.570 |
