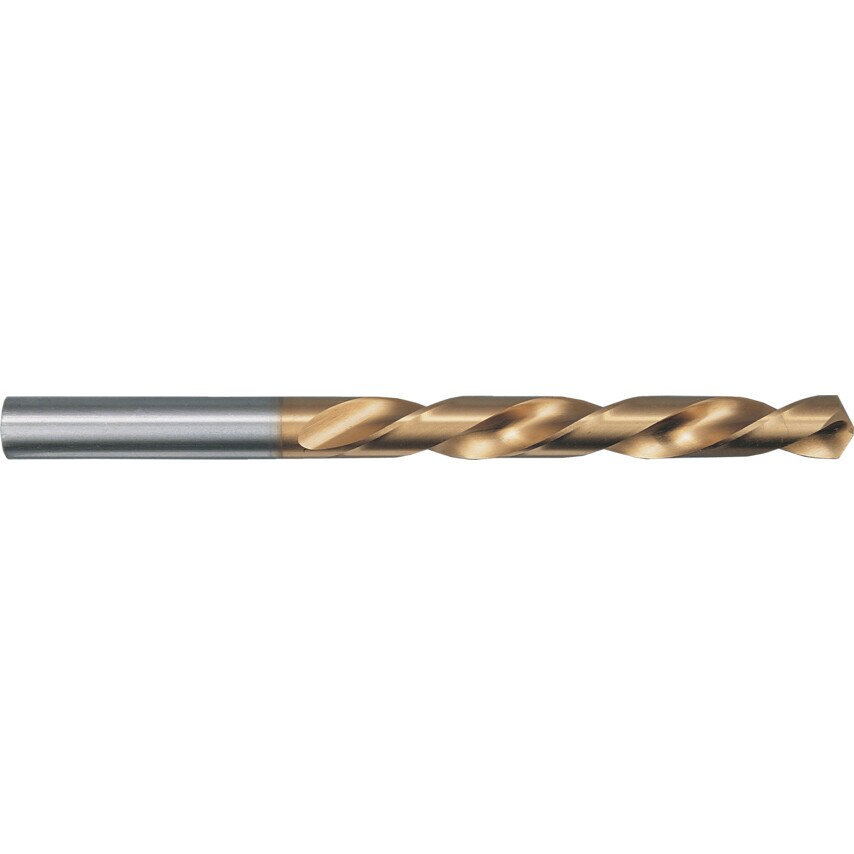

Series 651 HSS straight shank jobber drills metric TiN coated drills. For drilling steel and cast steel, alloyed and unalloyed grey cast iron, spheroidal iron, sintered powder metal, German silver and graphite.
Features and Benefits
High speed steel for improved rigidity
TiN coating for improved heat and wear resistance
Standards
Manufactured to BS 328, DIN338RN
| Shank Diameter Tolerance | F11 |
| Finish/Coating | TiN |
| Cutting Direction | Right Hand |
| Point Angle | 118\u00b0 |
| Material | HSS |
| Drill Diameter Tolerance | H8 |
| Flute Length | 11mm |
| Coolant Delivery | External |
| Number of Flutes | 2 |
| Series | 651 |
| Flute Construction | Ground flutes |
| Drill Diameter Metric | 0.95mm |
| Flute Type | Spiral |
| Standards Met | DIN 338 |
| Web Thickness | Form A |
| Overall Length | 32mm |
| MFR Part No. | 00651 000.950 |
