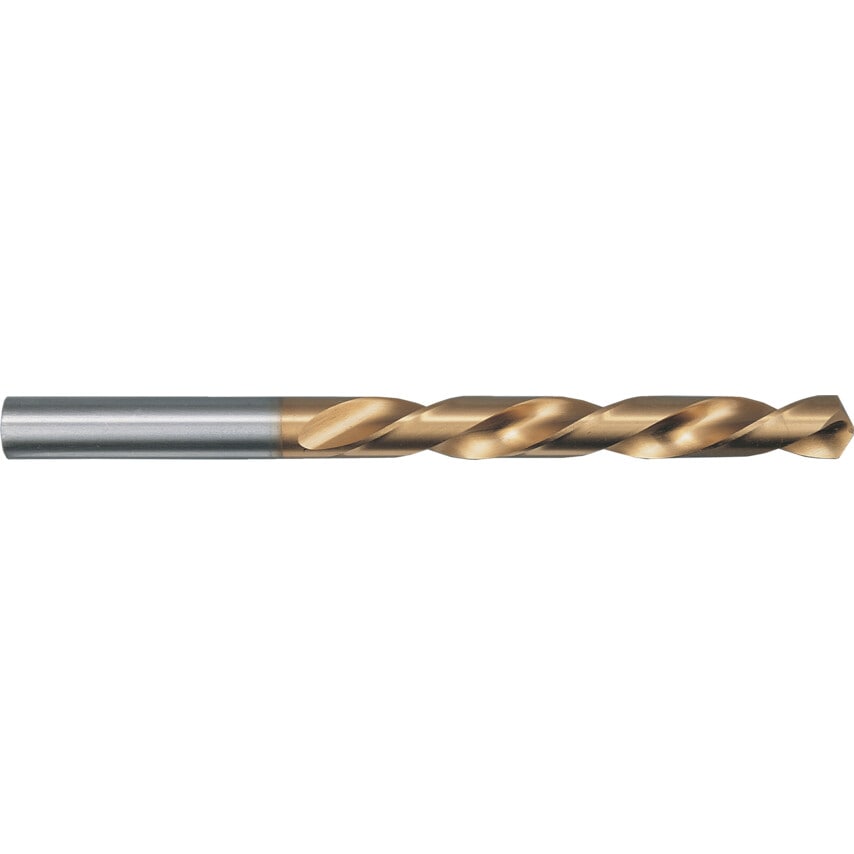

Series 651 HSS straight shank jobber drills metric TiN coated drills. For drilling steel and cast steel, alloyed and unalloyed grey cast iron, spheroidal iron, sintered powder metal, German silver and graphite.
Features and Benefits
High speed steel for improved rigidity
TiN coating for improved heat and wear resistance
Standards
Manufactured to BS 328, DIN338RN
| Number of Flutes | 2 |
| Series | 651 |
| Material | HSS |
| Finish/Coating | TiN |
| Coolant Delivery | External |
| Drill Diameter Tolerance | H8 |
| Cutting Direction | Right Hand |
| MFR Part No. | 00651 010.250 |
| Overall Length | 133mm |
| Drill Diameter Metric | 10.25mm |
| Point Angle | 118\u00b0 |
| Standards Met | DIN 338 |
| Helix Type | Low Helix |
| Flute Construction | Ground flutes |
| Flute Type | Spiral |
| Point Type | Conventional |
| Flute Length | 87mm |
