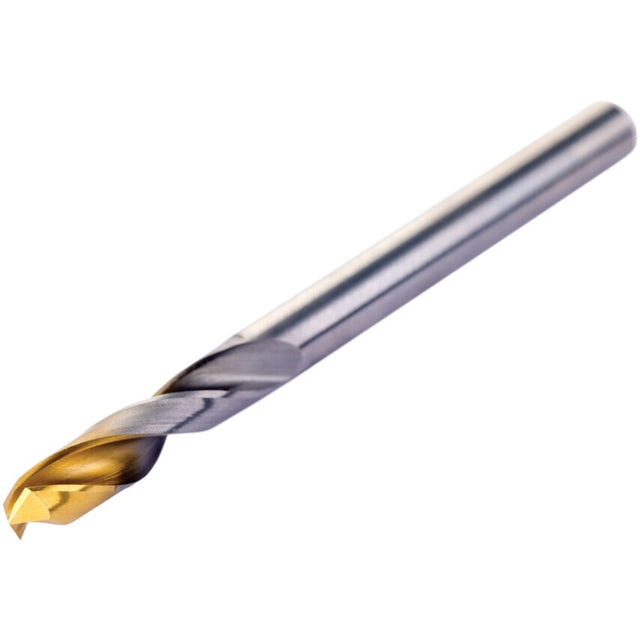

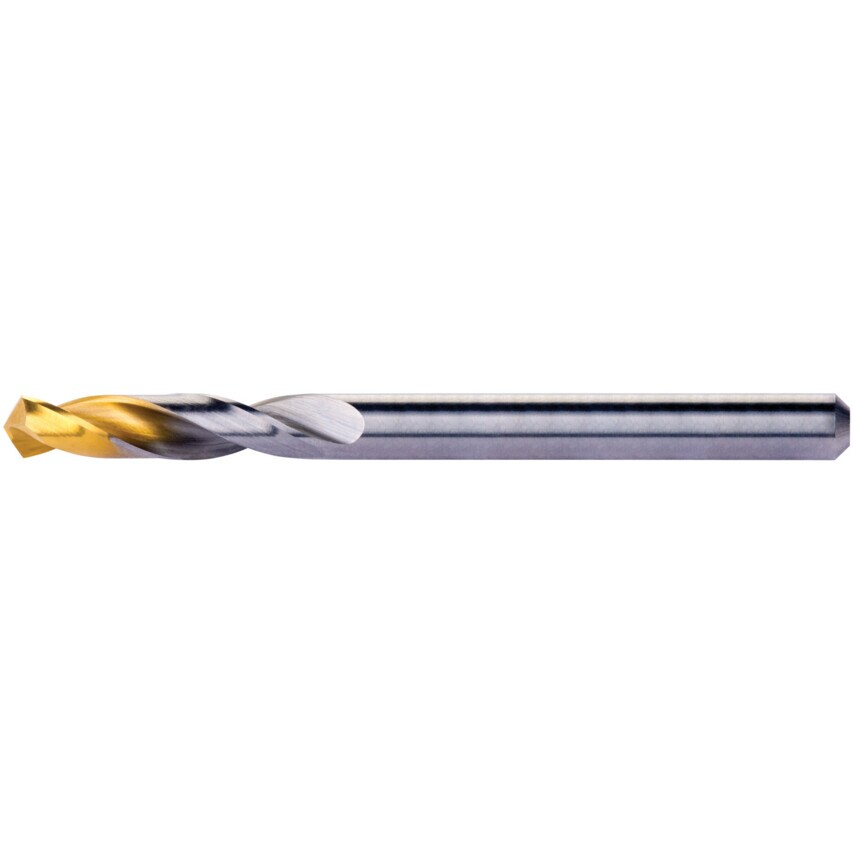

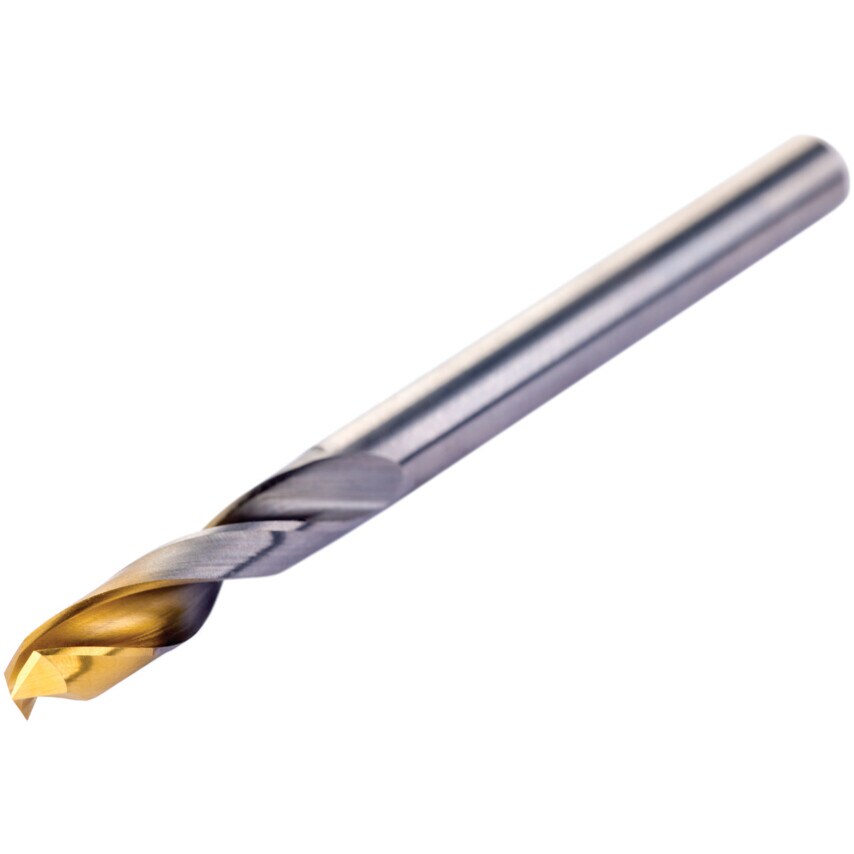

A versatile stub-length drill designed for precision drilling across various materials. Its robust construction and advanced features ensure consistent performance in both CNC and conventional machining environments.
Features and Benefits

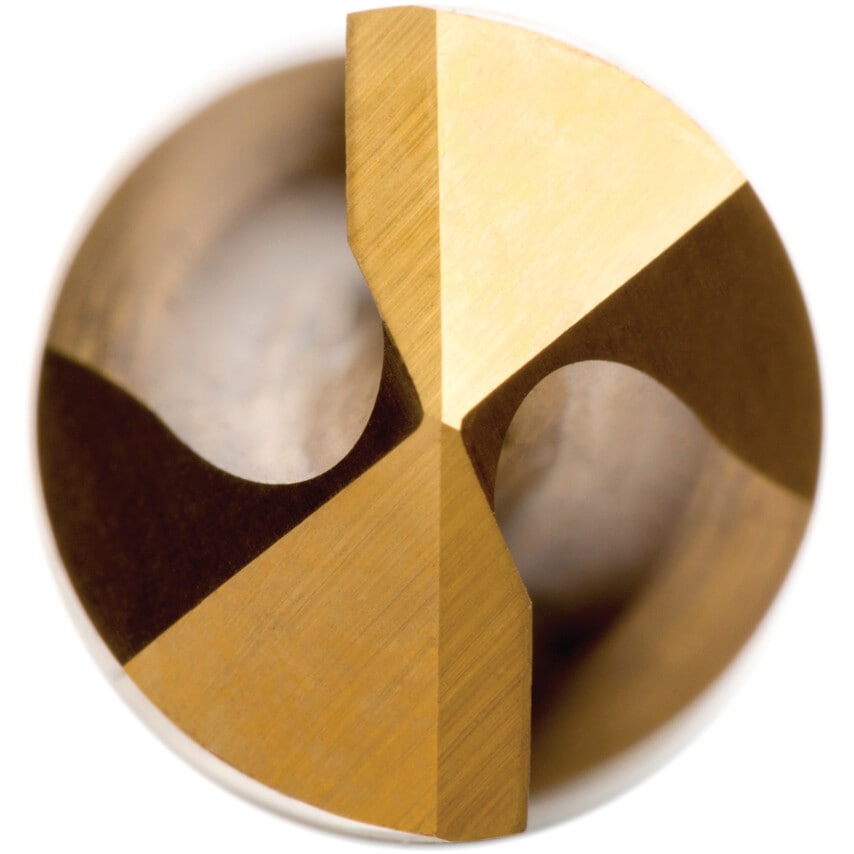

Four-facet split point geometry enhances self-centering and reduces thrust force
TiN-coated cutting edges improve wear resistance and extend tool life
Continuously thinned web design allows for multiple regrinds without compromising chip evacuation
Suitable for a wide range of materials, including steels and cast irons
Notes
Compatible with both CNC and manual machines
Available in various diameters to accommodate different drilling requirements
Standards
DIN 6539
| Series | R023 |
| Cutting Direction | Right Hand |
| Flute Length | 47mm |
| Point Type | Four Facet |
| Material | Carbide |
| Finish/Coating | TiN Tipped |
| Diameter | 11.0mm |
| Standards Met | DIN 6539 |
| Coating | TiN |
| Drill Diameter | 0.43in | 11mm |
| MFR Part No. | 8403063 |
| Drill Length Type | Stub |
| Point Angle | 120\u00b0 |
| System of Measurement | Metric |
| Overall Length | 95mm |
| Flute Type | Spiral |
