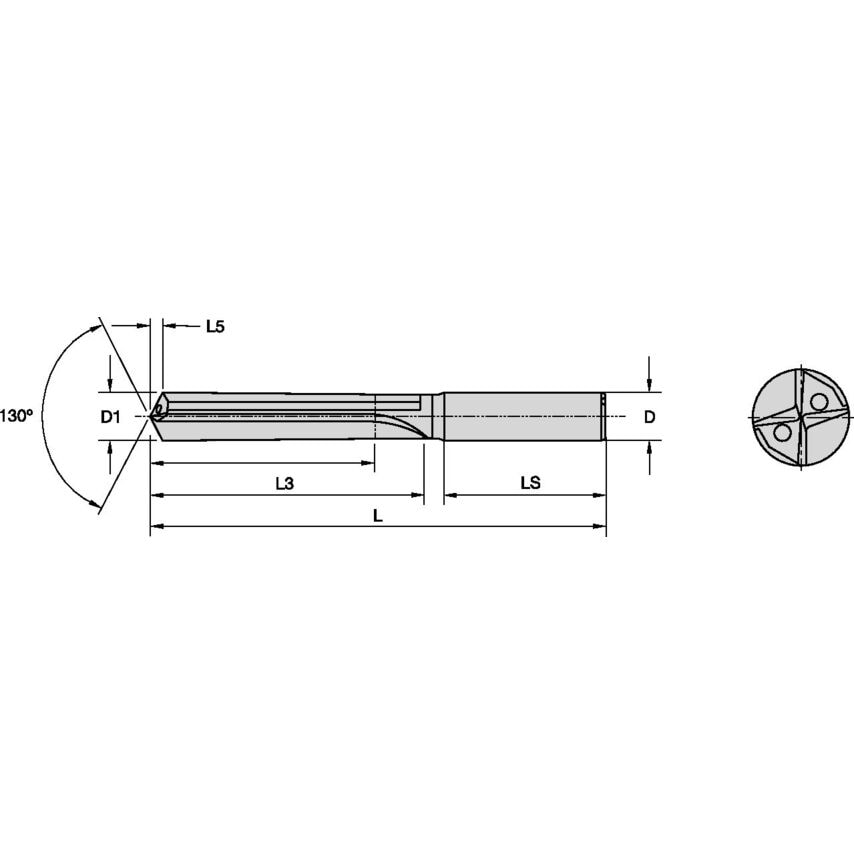

TX Drills Close Tolerance Holes Through Coolant
Solid Carbide Drills
| Helix Angle | 0.000 |
| Drill Depth | 29mm | 29.0000mm |
| Primary Material | Cast Iron |
| Flute Length | 36mm | 36.0000mm |
| Flute Construction | Straight Flute |
| Drill Diameter Tolerance | 0.001000 to 0.009000mm |
| Adapter Type | Cylindrical |
| Overall Length | 74mm | 74.0000mm |
| Drill Point | 0.979mm |
| Material | Carbide |
| Adapter Style | Straight-Cylindrical |
| Shank Length | 36.0000mm |
| Finish/Coating | Uncoated |
| Coolant Delivery | Off-center Axial Coolant |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Number of Flutes | 2 |
| Drill Diameter | 4.2000mm |
| Coolant Supplied | Yes |
| Functional Length | 73.0210mm |
| Clamping Length | 36mm |
| Assembly Length | 37.021mm |
| MFR Part No. | 1198572 |
| Unit Measured | Metric |
| Gage Length | 38mm |
| Hand Preference | Right |
