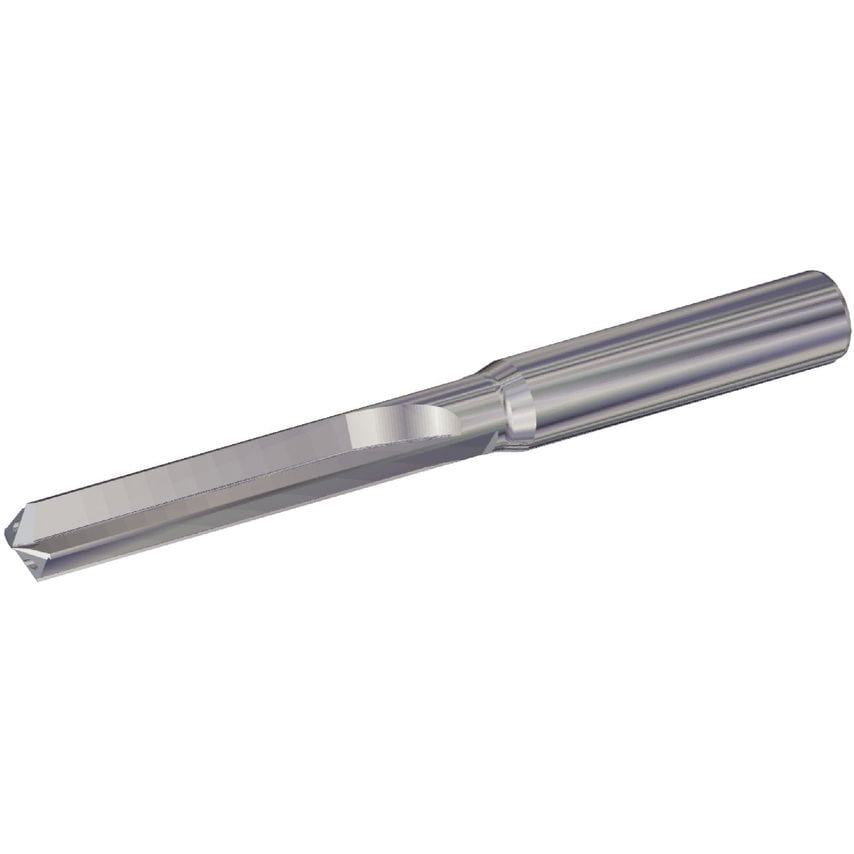

TX Drills Close Tolerance Holes Through Coolant
Solid Carbide Drills
| Coolant Supplied | Yes |
| Functional Length | 89.5080mm |
| Primary Material | Cast Iron |
| Drill Depth | 43mm | 43.0000mm |
| Hand Preference | Right |
| MFR Part No. | 1198599 |
| Assembly Length | 53.508mm |
| Flute Length | 53mm | 53.0000mm |
| Drill Diameter Tolerance | 0.001000 to 0.010000mm |
| Flute Construction | Straight Flute |
| Clamping Length | 36mm |
| Adapter Type | Cylindrical |
| Finish/Coating | Uncoated |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| Material | Carbide |
| Number of Flutes | 2 |
| Adapter Style | Straight-Cylindrical |
| Helix Angle | 0.000 |
| Overall Length | 91mm | 91.0000mm |
| Unit Measured | Metric |
| Gage Length | 55mm |
| Drill Diameter | 6.4000mm |
| Shank Length | 36.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Drill Point | 1.492mm |
