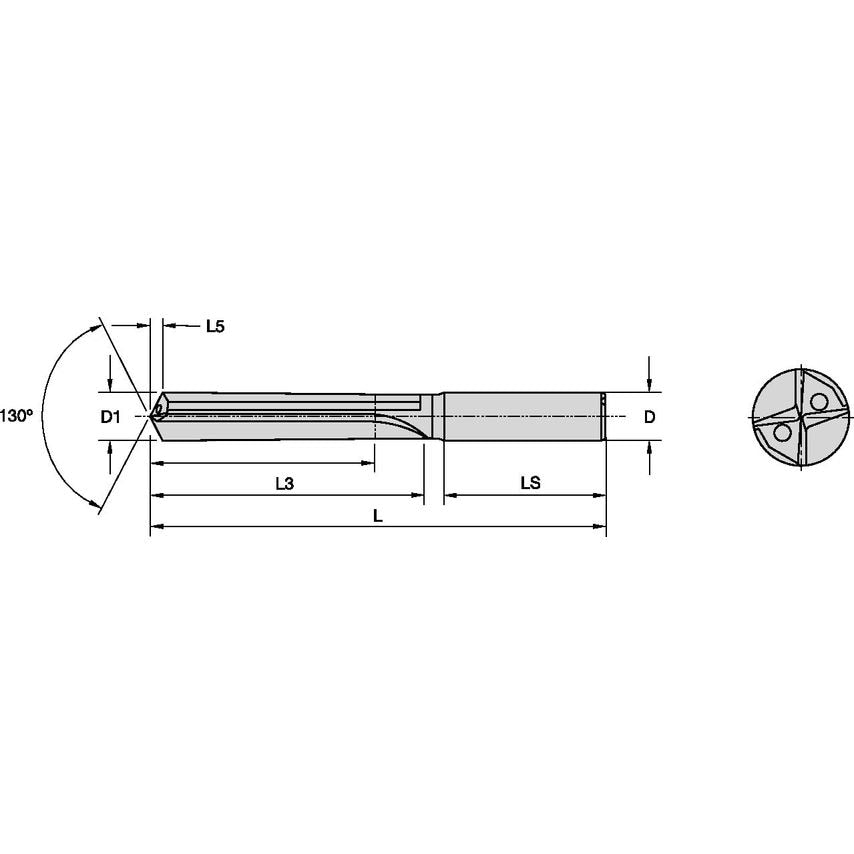

TX Drills Close Tolerance Holes Through Coolant
Solid Carbide Drills
| Finish/Coating | Uncoated |
| Flute Length | 61mm | 61.0000mm |
| Helix Angle | 0.000 |
| Unit Measured | Metric |
| Drill Diameter Tolerance | 0.001000 to 0.010000mm |
| Assembly Length | 61.099mm |
| Drill Depth | 49mm | 49.0000mm |
| Material | Carbide |
| Primary Material | Cast Iron |
| MFR Part No. | 1753934 |
| Number of Flutes | 2 |
| Adapter Type | Cylindrical |
| Functional Length | 101.0990mm |
| Helix Type | Right Hand Helix/Flute |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Flute Construction | Straight Flute |
| Coolant Diameter | 1.4400mm (0.0693in) |
| Shank Length | 40.0000mm |
| Drill Point | 1.901mm |
| Hand Preference | Right |
| Drill Diameter | 8.7000mm |
| Coolant Supplied | Yes |
| Adapter Style | Straight-Cylindrical |
| Overall Length | 103mm | 103.0000mm |
