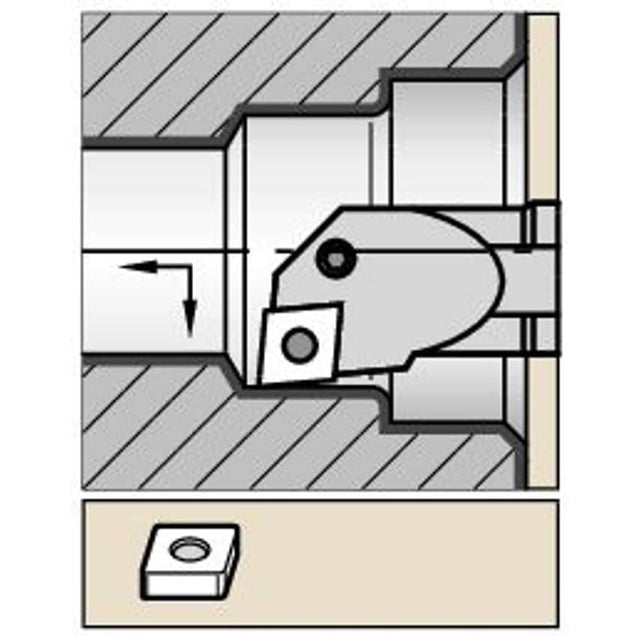

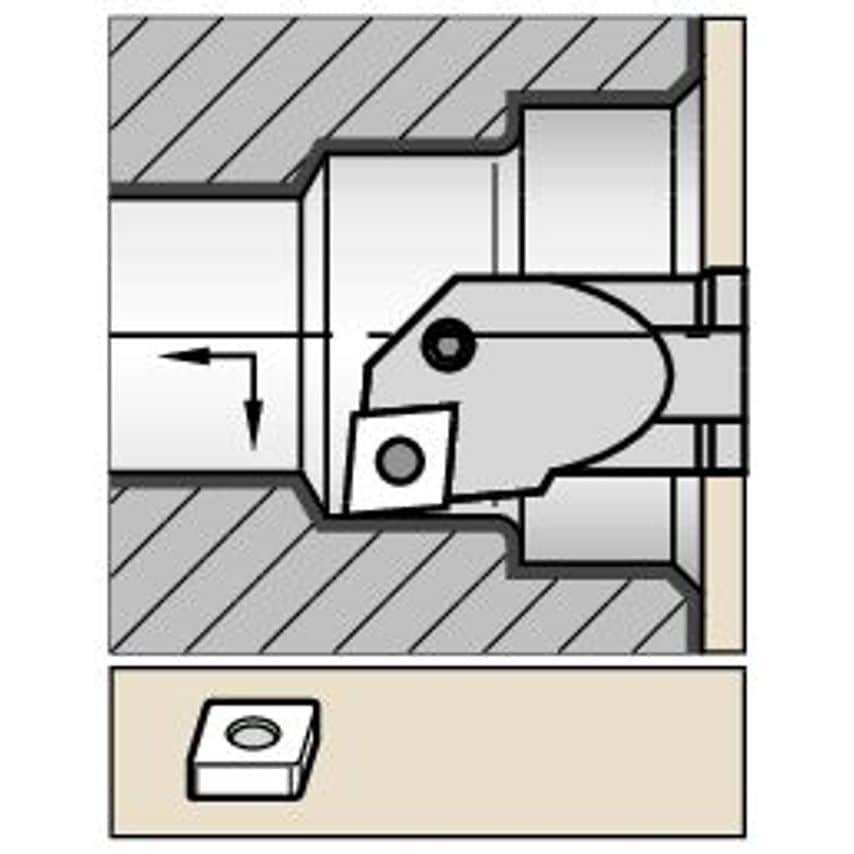

Kenloc InsertsKenlever Boring Bars
| Insert Style | CN_A | CN_G |
| Set Type | Individual Boring Bar |
| Cutting Direction | Right Hand |
| Insert Size | 1204 |
| Unit Measured | Metric |
| Insert Holding Type | Lever Lock |
| Approach Angle | 95\u00b0 |
| Insert Inscribed Circle | 12.7mm |
| Body Material | Steel |
| Hand Preference | Right |
| MFR Part No. | 2447152 |
| Coolant Supply Size | 1/4-18 NPT |
| Insert Shape | 80\u00b0 Rhombic |
| Toolholder Style | PCLN |

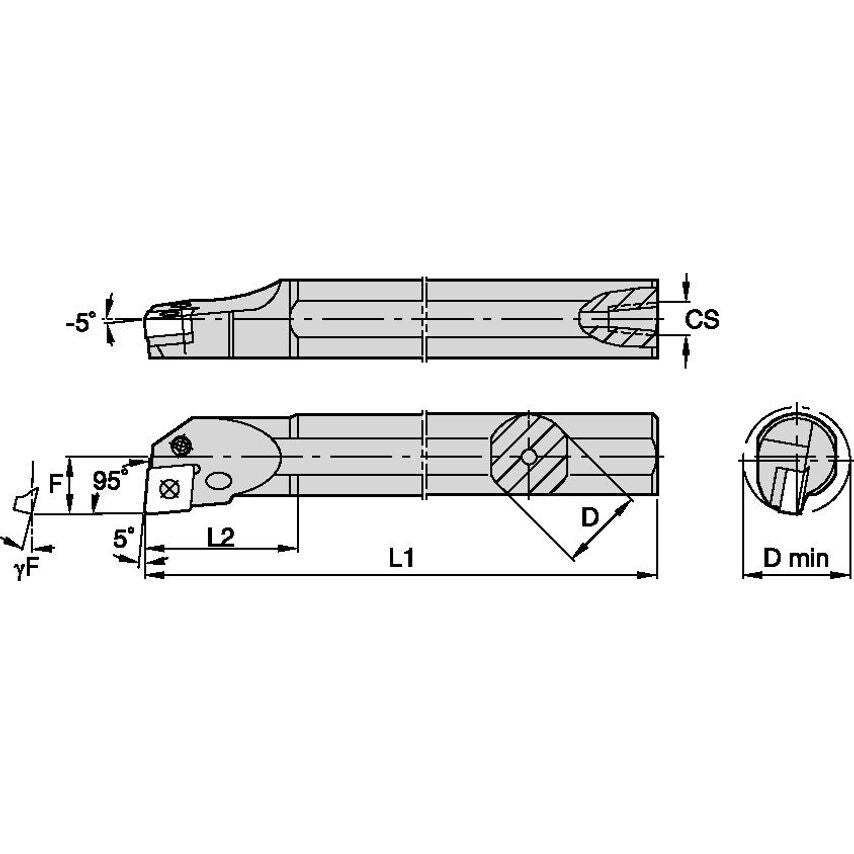

| ISO Designation | A32U PCLNR 12 |
| Minimum Bore Diameter (D) | 50mm |
| Clamping Type | Hole Clamping |
| Shank Material | Steel |
| Coolant Delivery | Internal |
| Shank Diameter (d) | 32mm |
| Adapter Type Machine Side | Boring Bar |
| Insert Cutting Edge Length | 12.9mm |
| Centre To Cutting Tip | 22mm |
