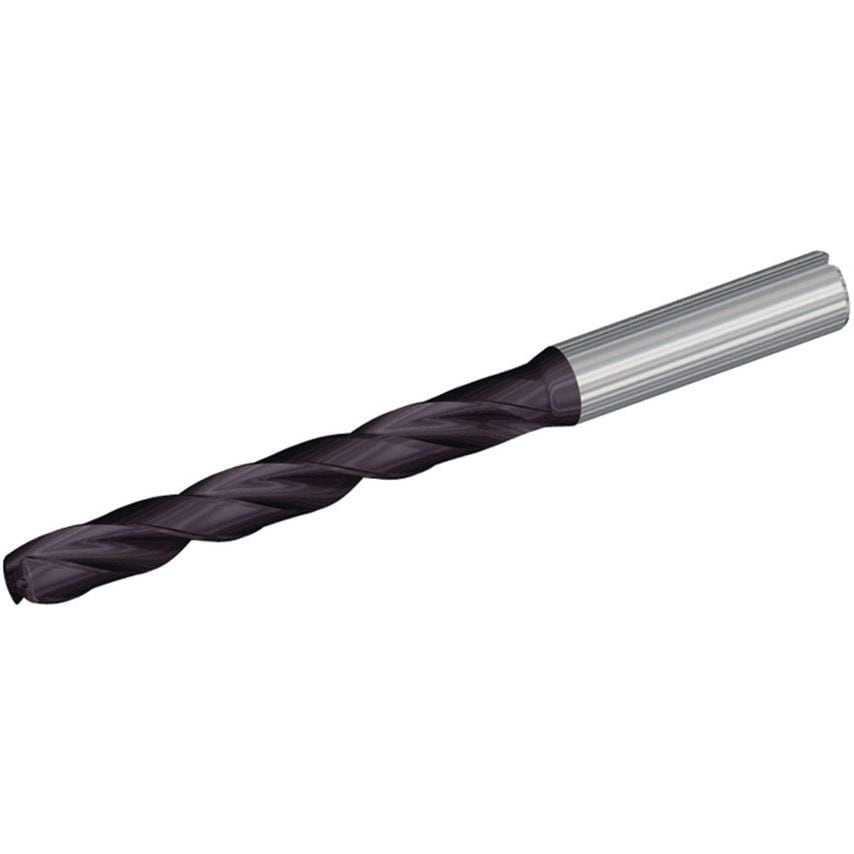

SE Four-Margin Drills Steel Through CoolantHigh-Performance Solid Carbide Drills
| Flute Construction | Helical Flute |
| Drill Point | 2.188mm |
| MFR Part No. | 2229365 |
| Adapter Style | Straight-Cylindrical |
| Adapter Type | Cylindrical |
| Drill Depth | 79mm | 79.0000mm |
| Clamping Length | 45mm |
| Coolant Supplied | Yes |
| Overall Length | 141mm | 141.0000mm |
| Finish/Coating | TiAlN |
| Hand Preference | Right |
| Gage Length | 96mm |
| Assembly Length | 93.812mm |
| Helix Type | Right Hand Helix/Flute |
| Unit Measured | Metric |
| Functional Length | 138.8120mm |
| Shank Length | 45.0000mm |
| Helix Angle | 27.998 |
| Drill Diameter | 11.0000mm |
| Material | Carbide |
| Flute Length | 94mm | 94.0000mm |
| Primary Material | Steel |
| Coolant Delivery | Off-center Axial Coolant |
| Number of Flutes | 2 |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Adapter / Shank / Bore Diameter | 12.0000mm |
