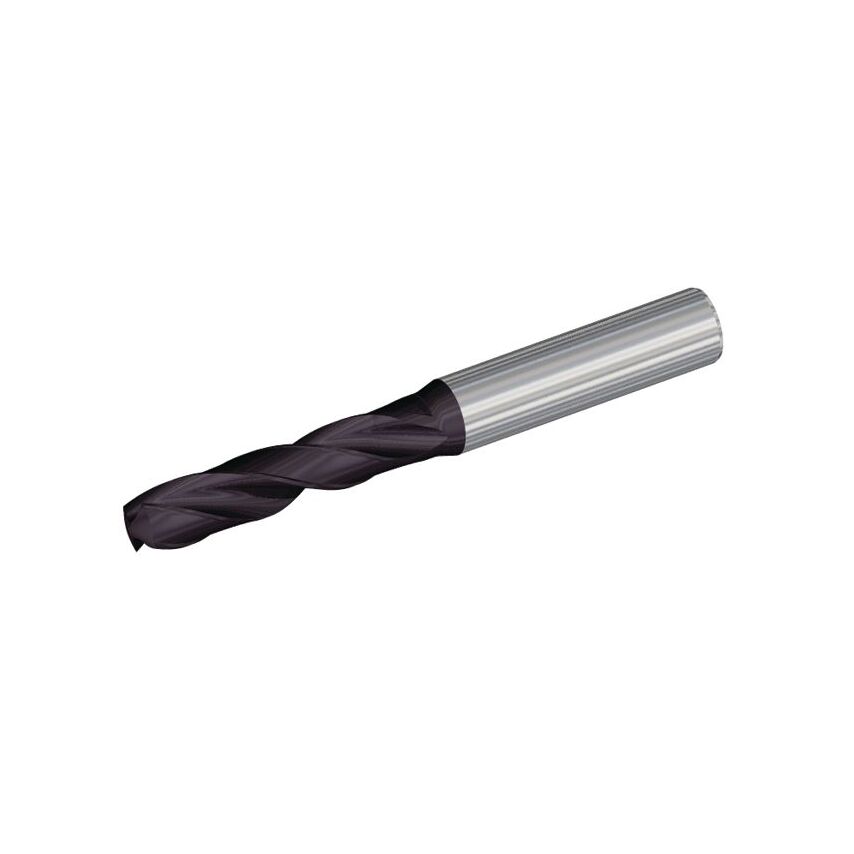

Kenna Universal Drills Without Coolant
Solid Carbide Drills
| Unit Measured | Metric |
| Coolant Delivery | No Coolant |
| Helix Angle | 28.174 |
| Hand Preference | Right |
| Adapter Style | Straight-Cylindrical |
| Material | Carbide |
| Overall Length | 102mm | 102.0000mm |
| Adapter Type | Cylindrical |
| Functional Length | 100.2230mm |
| Flute Construction | Helical Flute |
| Shank Length | 45.0000mm |
| Flute Length | 55mm | 55.0000mm |
| Drill Diameter | 10.4000mm |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Primary Material | Steel |
| Assembly Length | 55.223mm |
| MFR Part No. | 1992232 |
| Clamping Length | 45mm |
| Adapter / Shank / Bore Diameter | 12.0000mm |
| Coolant Supplied | No |
| Drill Depth | 40mm | 40.0000mm |
| Drill Point | 1.777mm |
| Finish/Coating | TiAlN |
| Number of Flutes | 2 |
| Helix Type | Right Hand Helix/Flute |
