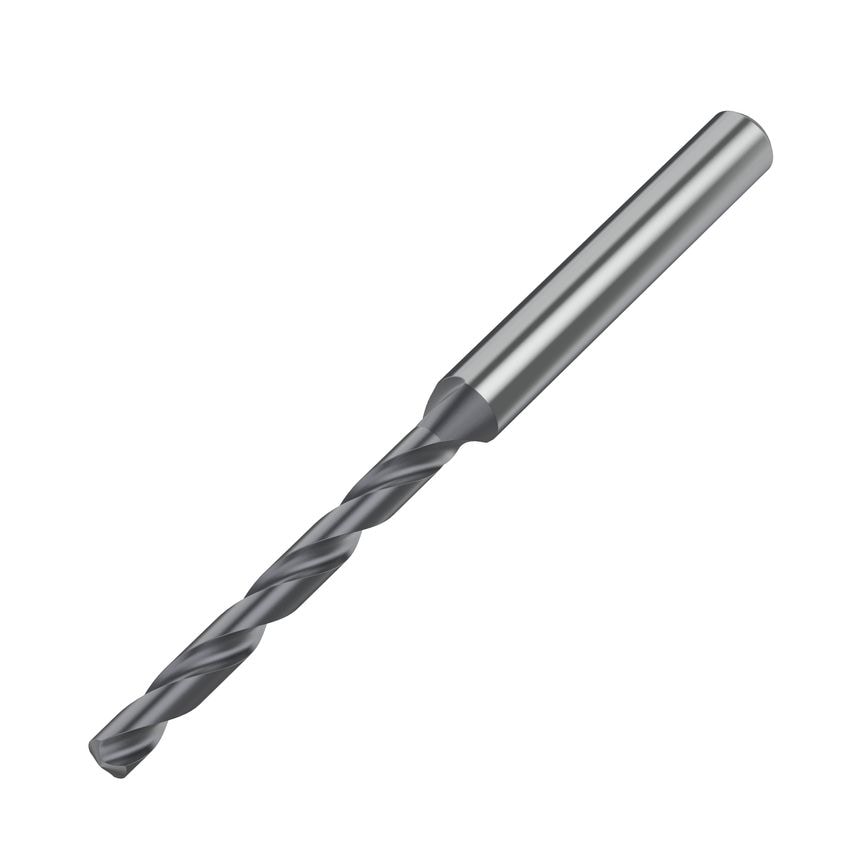

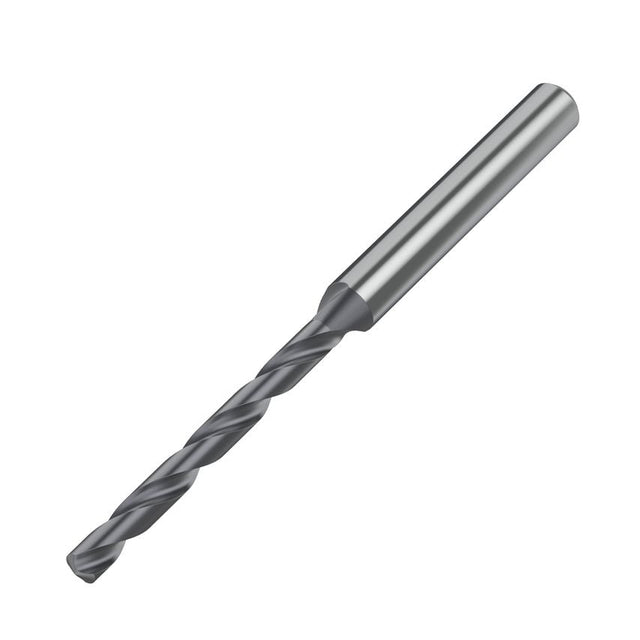

Kenna Universal Drills with Through CoolantSolid Carbide Drills
| Finish/Coating | TiAlN |
| Unit Measured | Metric |
| Coolant Diameter | 1.4400mm (0.0882in) |
| Assembly Length | 79.908mm |
| Coolant Delivery | Off-center Axial Coolant |
| Clamping Length | 40mm |
| Primary Material | Steel |
| Hand Preference | Right |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Overall Length | 122mm | 122.0000mm |
| Functional Length | 119.9080mm |
| Material | Carbide |
| Adapter Style | Straight-Cylindrical |
| Helix Type | Right Hand Helix/Flute |
| Flute Construction | Helical Flute |
| Helix Angle | 29.940 |
| Adapter Type | Cylindrical |
| Flute Length | 80mm | 80.0000mm |
| Coolant Supplied | Yes |
| Drill Diameter | 9.9000mm |
| Drill Depth | 68mm | 68.0000mm |
| Drill Point | 2.092mm |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| MFR Part No. | 2264956 |
| Number of Flutes | 2 |
| Shank Length | 40.0000mm |
