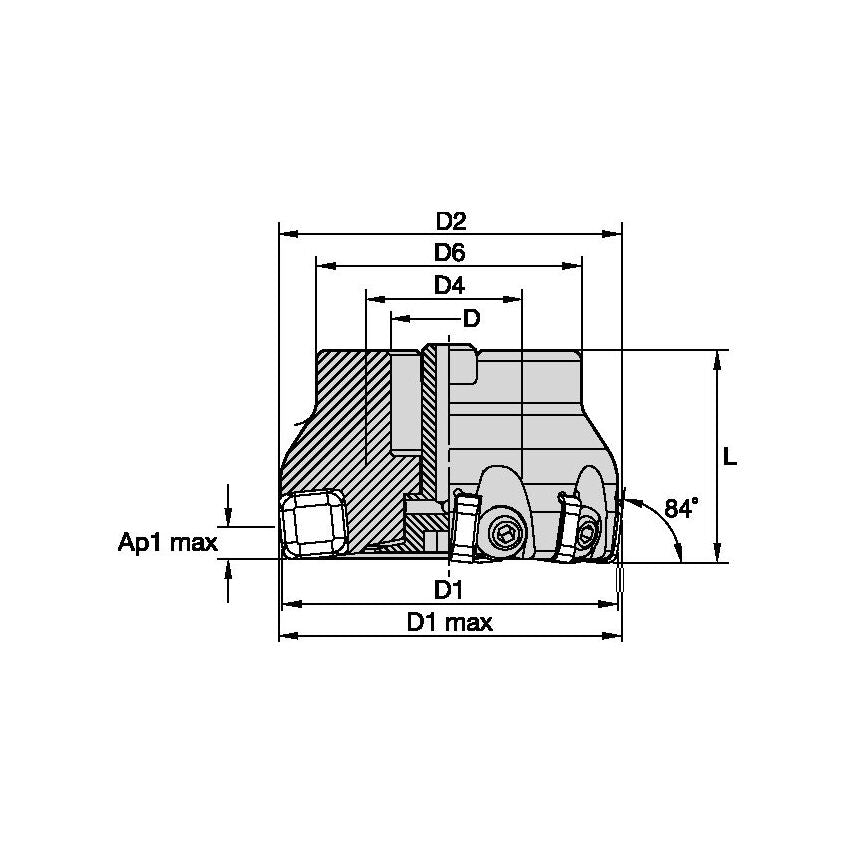

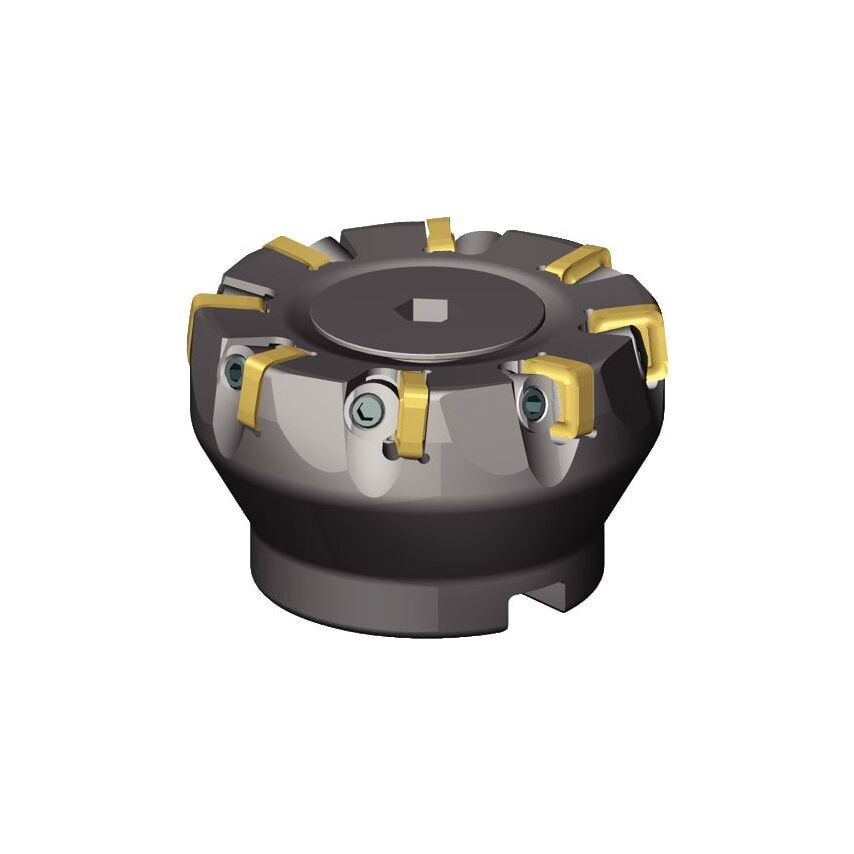

Shell Mills Cast Iron MachiningKSSR 84
| Clamp Type | Wedge Clamp Before Insert |
| MFR Part No. | 2466100 |
| Milling Application | Face Mill |
| Number of Inserts | 24 |
| Number of Flutes | 24 |
| Maximum Cutting Diameter | 162mm |
| Max. Depth of Cut | 5.0000mm |
| Coolant Supplied | Yes |
| Center Cutting Tool | No Center Cutting |
| Hand Preference | Left |
| Unit Measured | Metric |
| Body Material | Steel |
| Body Diameter Max | 160.24mm |
| Adapter Type Machine Side | Shell Mill |
| Hub Diameter | 90mm | 90.0000mm |
| Insert Shape | S-Square 90 |
