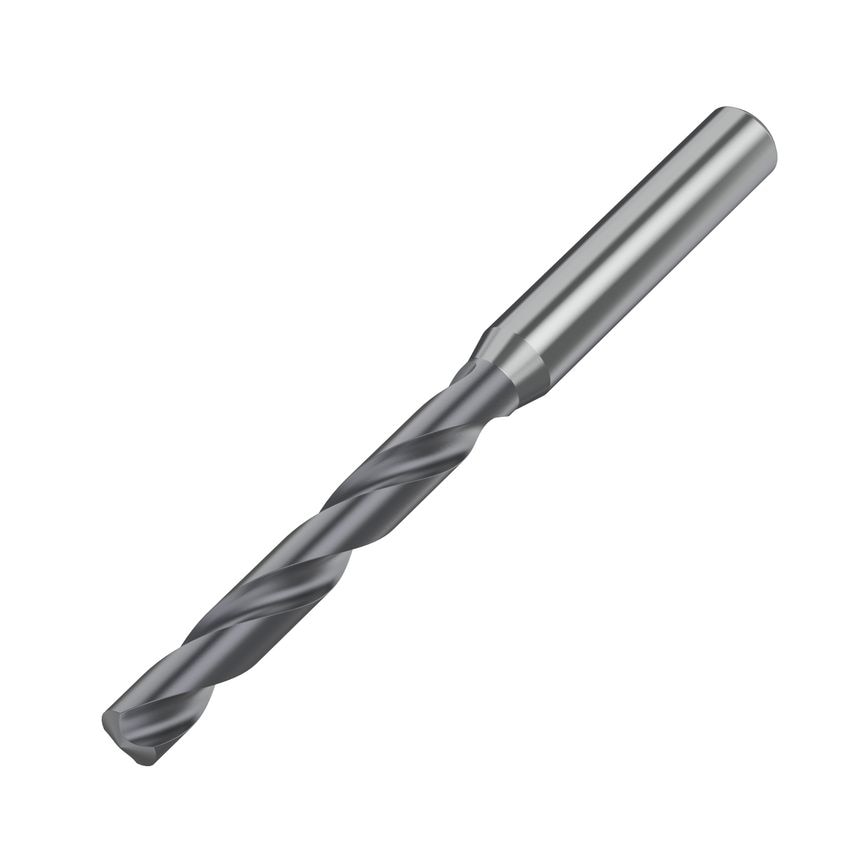

Kenna Universal Drills With Through Coolant
Solid Carbide Drills
| Cutting Direction | Right Hand |
| Adapter Type | Cylindrical |
| Primary Material | Steel |
| Diameter x Depth | 3xD |
| Series | B976A |
| Coolant Supplied | Yes |
| Flute Construction | Helical Flute |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Drill Diameter | 15.5000mm |
| Shank Diameter | 16mm |
| Product Type | Solid Carbide Drills |
| ISO Category | K | M | N | P | S |
| Number of Flutes | 2 |
| MFR Part No. | 1913556 |
| Unit Measured | Metric |
| Functional Length | 112.3200mm |
| Flute Length | 65mm | 65.0000mm |
| Hand Preference | Right |
| Drill Depth | 45mm | 45.0000mm |
| Point Angle | 140 |
| Overall Length | 115mm | 115.0000mm |
| Flute Type | Spiral |
| Adapter / Shank / Bore Diameter | 16.0000mm |
| Finish/Coating | TiAlN |
| Material Grade | KC7315 |
| Adapter Style | Straight-Cylindrical |
| Assembly Length | 69.32mm |
| Standards Met | DIN 6535 |
| Material | Carbide |
| Coolant Delivery | Off-center Axial Coolant |
| Helix Angle | 28.630 |
| Shank Diameter Tolerance | H6 |
| Clamping Length | 43mm |
| Drill Point | 2.68mm |
| Shank Length | 48.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Carbide Drill Type | Carbide High Performance |
