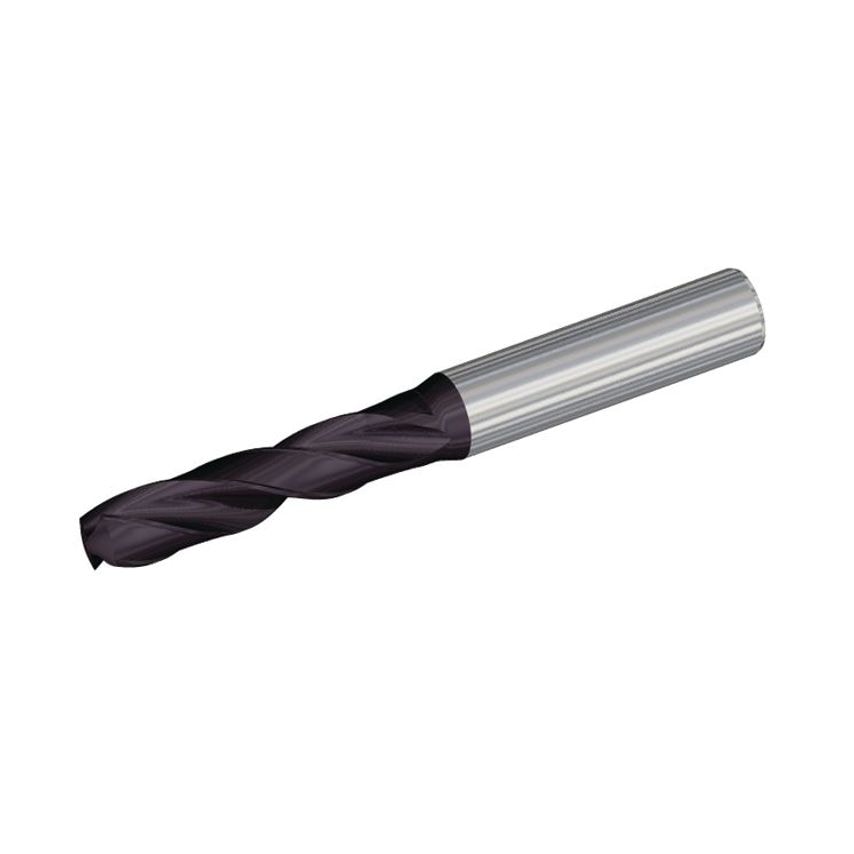

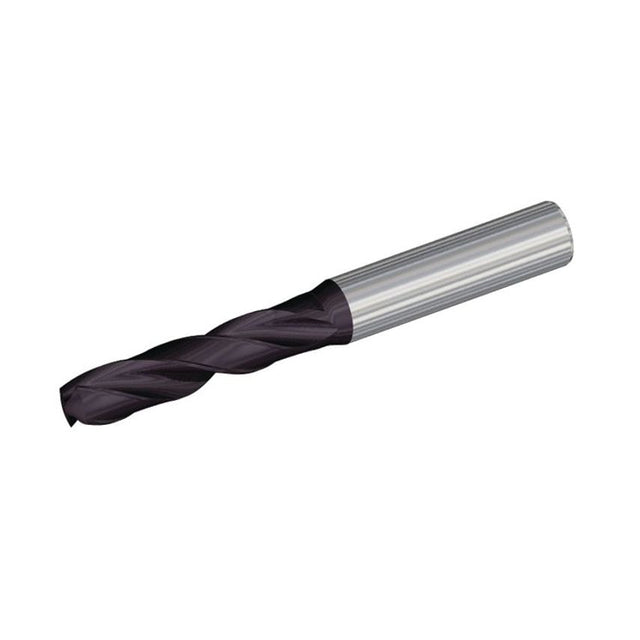

Kenna Universal Drills Without Coolant
Solid Carbide Drills

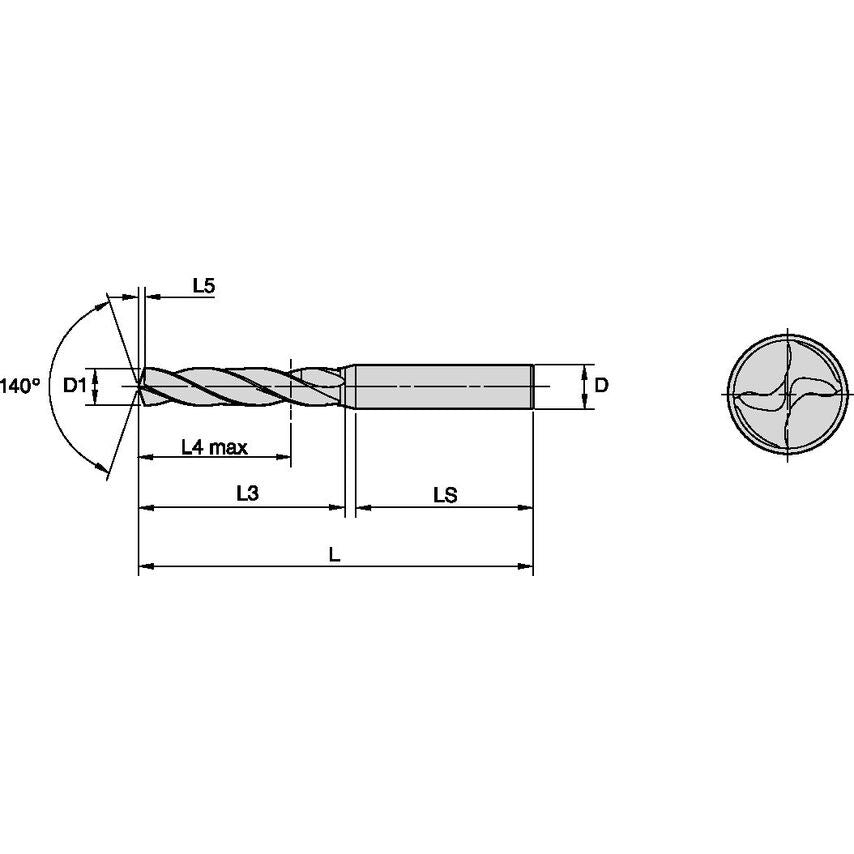

| Adapter Style | Straight-Cylindrical |
| MFR Part No. | 2425178 |
| Helix Angle | 26.082 |
| Clamping Length | 45mm |
| Unit Measured | Metric |
| Finish/Coating | TiAlN |
| Shank Length | 45.0000mm |
| Drill Depth | 43mm | 43.0000mm |
| Flute Construction | Helical Flute |
| Primary Material | Steel |
| Overall Length | 107mm | 107.0000mm |
| Assembly Length | 59.905mm |
| Coolant Supplied | No |
| Hand Preference | Right |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Adapter Type | Cylindrical |
| Helix Type | Right Hand Helix/Flute |
| Functional Length | 104.9050mm |
| Coolant Delivery | No Coolant |
| Adapter / Shank / Bore Diameter | 14.0000mm |
| Flute Length | 60mm | 60.0000mm |
| Number of Flutes | 2 |
| Drill Diameter | 12.2000mm |
| Material | Carbide |
| Drill Point | 2.095mm |
