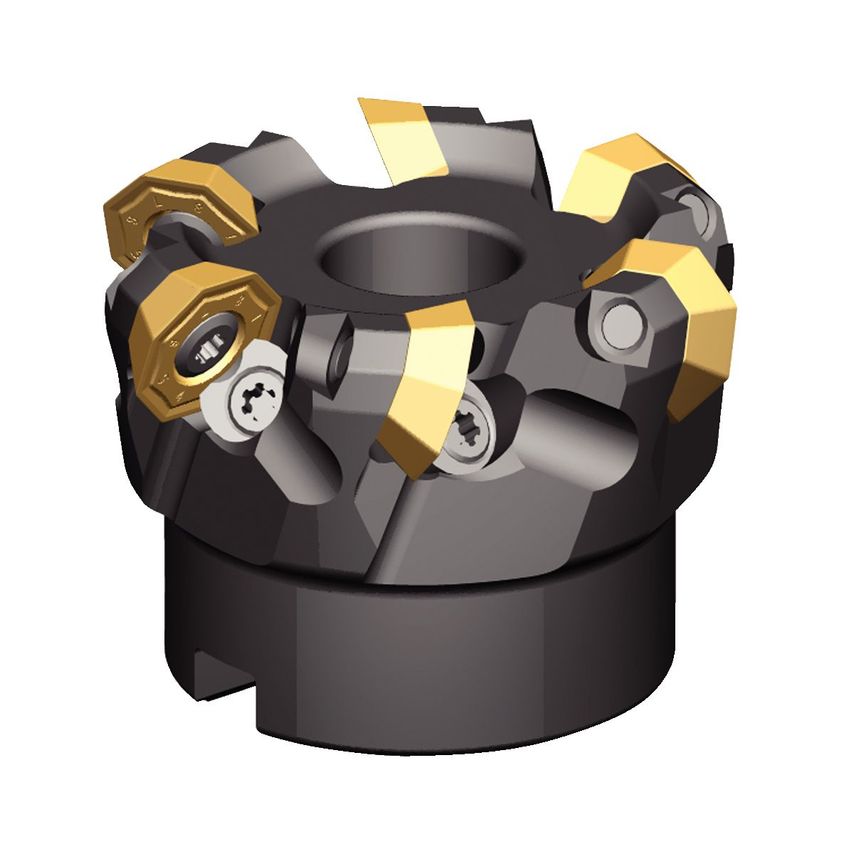

Shell MillsKSOM Mini

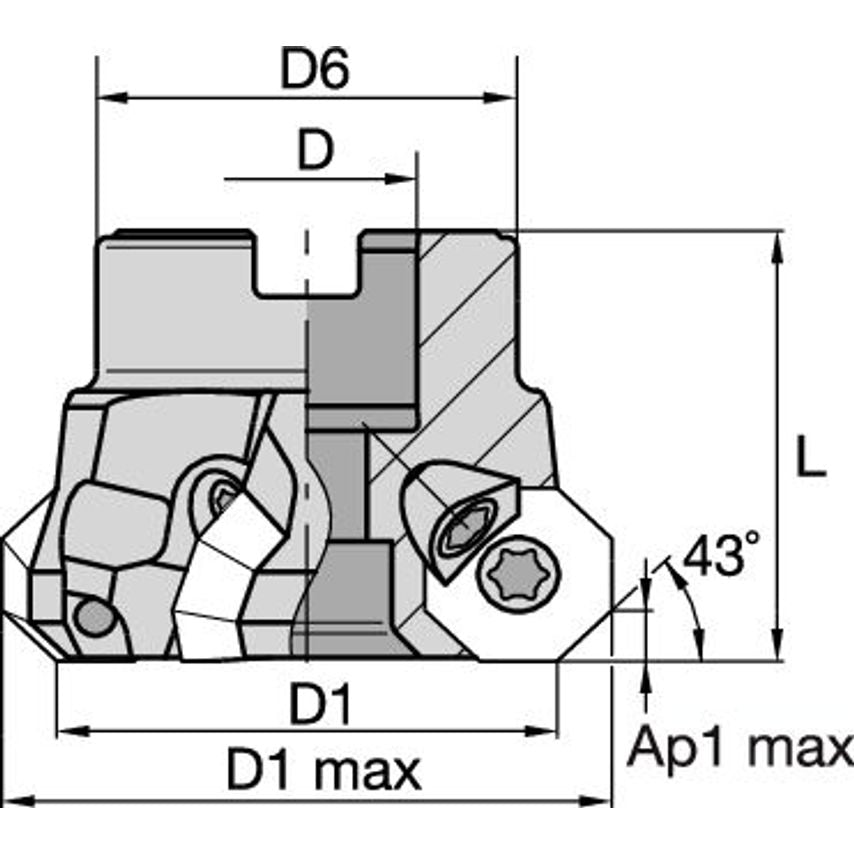

| Body Diameter Max | 105.45mm |
| Center Cutting Tool | No Center Cutting |
| Insert Shape | O-Octogon 135 |
| Hand Preference | Right |
| Adapter Type Machine Side | Shell Mill |
| Number of Flutes | 10 |
| MFR Part No. | 2489447 |
| Number of Inserts | 10 |
| Coolant Supplied | No |
| Clamp Type | Screw Clamping |
| Maximum Cutting Diameter | 110.236mm |
| Hub Diameter | 73.15mm | 73.1500mm |
| Max. Depth of Cut | 3.5000mm |
| Unit Measured | Imperial |
| Milling Application | Face Mill |
| Body Material | Steel |
