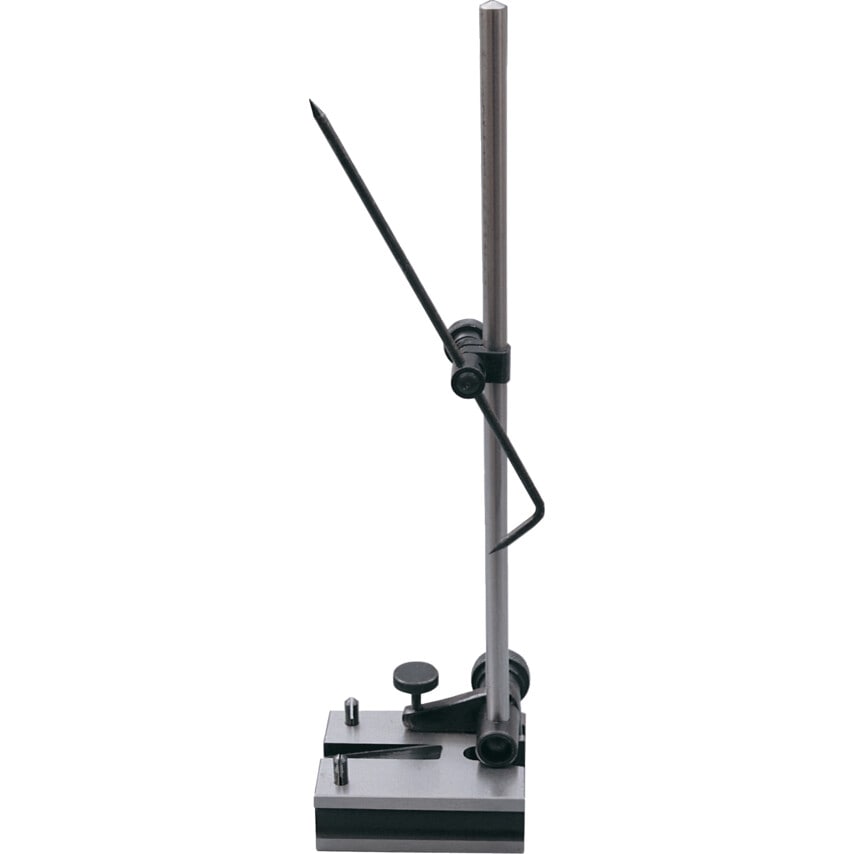

Used for marking out lines parallel to a true edge or groove, and also to mark the centre of round bars. Machined base, two pillars, a double ended scriber and an adjustable attachment for holding scribers up to 1/4 diameter on to the pillar. The base has a machined V-groove for use on pipes and round bar and two frictionally held pins which are used as a guide when sliding along the true edge or groove. The angle of the pillar can be finely adjusted with the use of a knurled thumb screw. Supplied with two pillars.
Base dimensions: 80 x 30mm.
| Tool Type | Surface Gauge |
| Tip Material | Steel |
| MFR Part No. | SG305 |
| Stem Type | Cone shaped |
| Body Diameter | 63mm |
| Retractability | Retractable |
| For Use With | 7/32\ Accessories | Scriber |
| Pillar Height | 230mm | 305mm |
| Type | Surface Gauge |
| Overall Depth | 80mm |
| Includes | (2) Pillars | Adjustable Attachment | Double-ended Scriber | Machined Base |
| Special Features | V Shaped Groove in Base |
| Overall Width | 63mm |
| Overall Length | 350mm |
