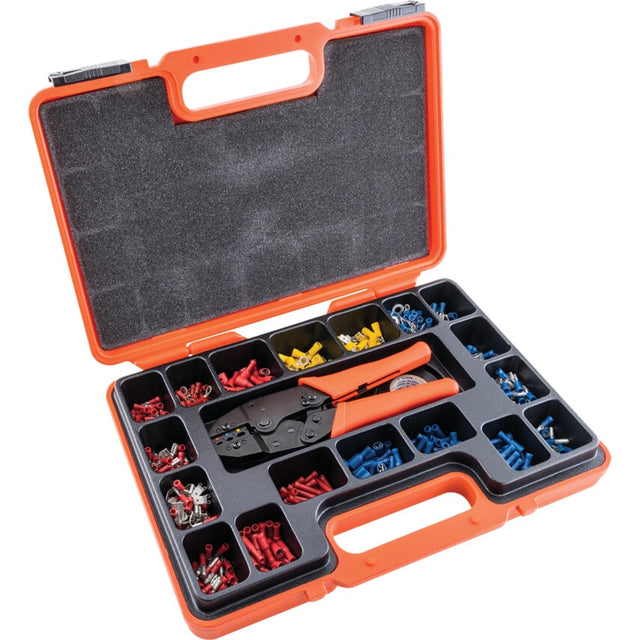

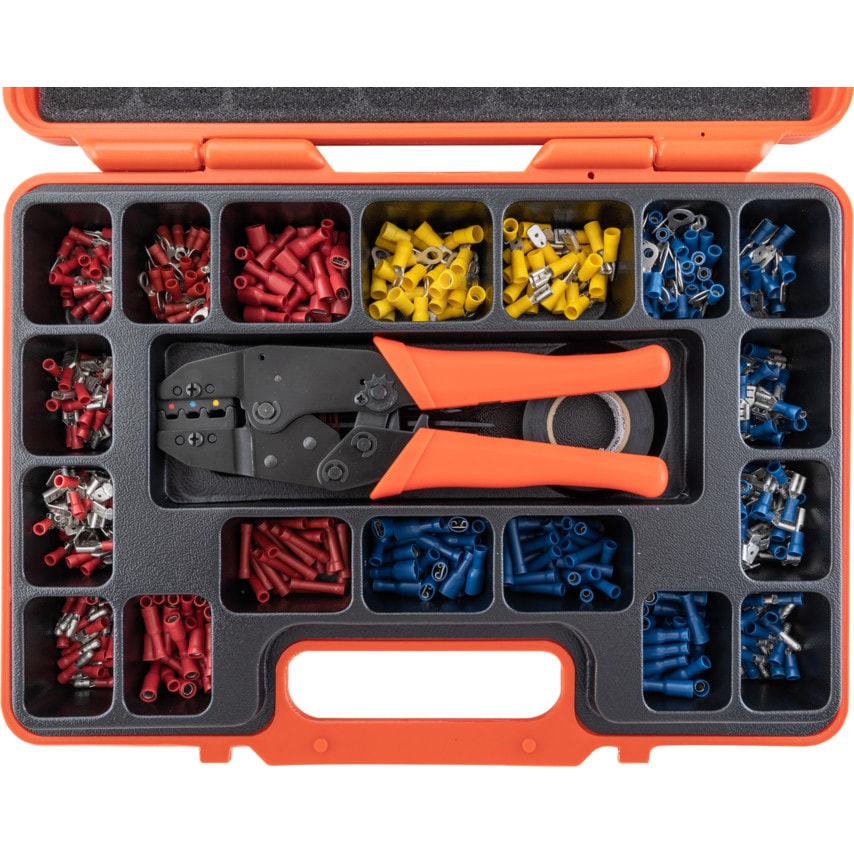

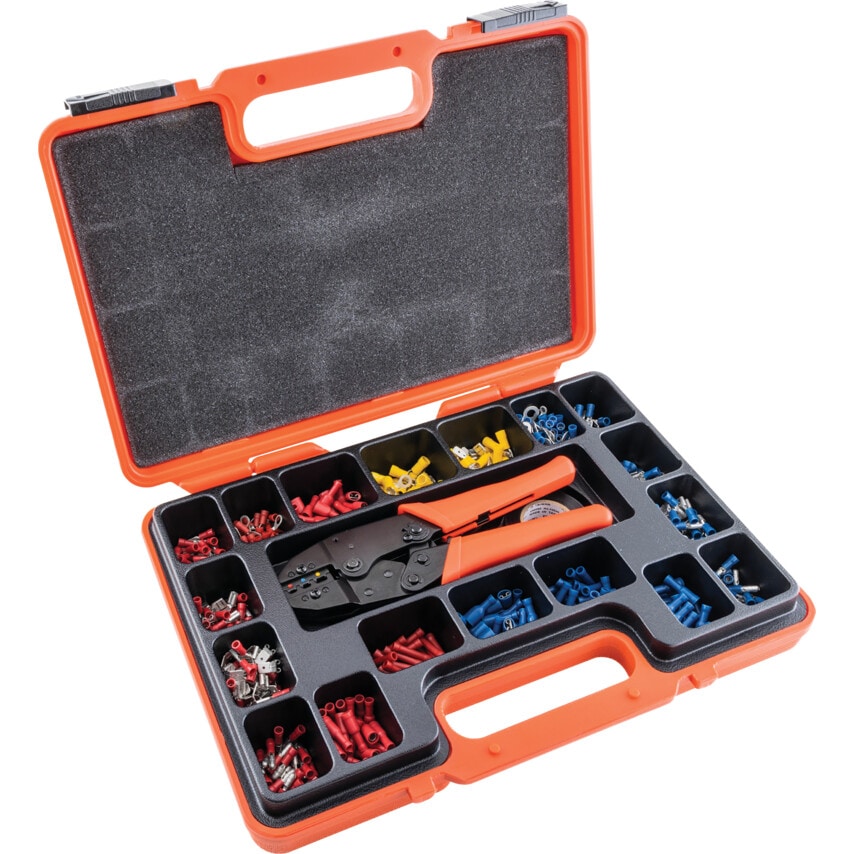

Heavy duty 220mm ratchet crimper with a selection of pre-insulated red, blue & yellow electrical connector terminals, cable ties and insulation tape. Ratchet crimper has laminated steel jaws with strengthened PVC handle grips. Suitable for crimping insulated terminals as follows:
Red channel: 0.5 - 1.00mm,
Blue channel: 1.5 - 2.5mm,
Yellow channel: 4.0 - 6.0mm.

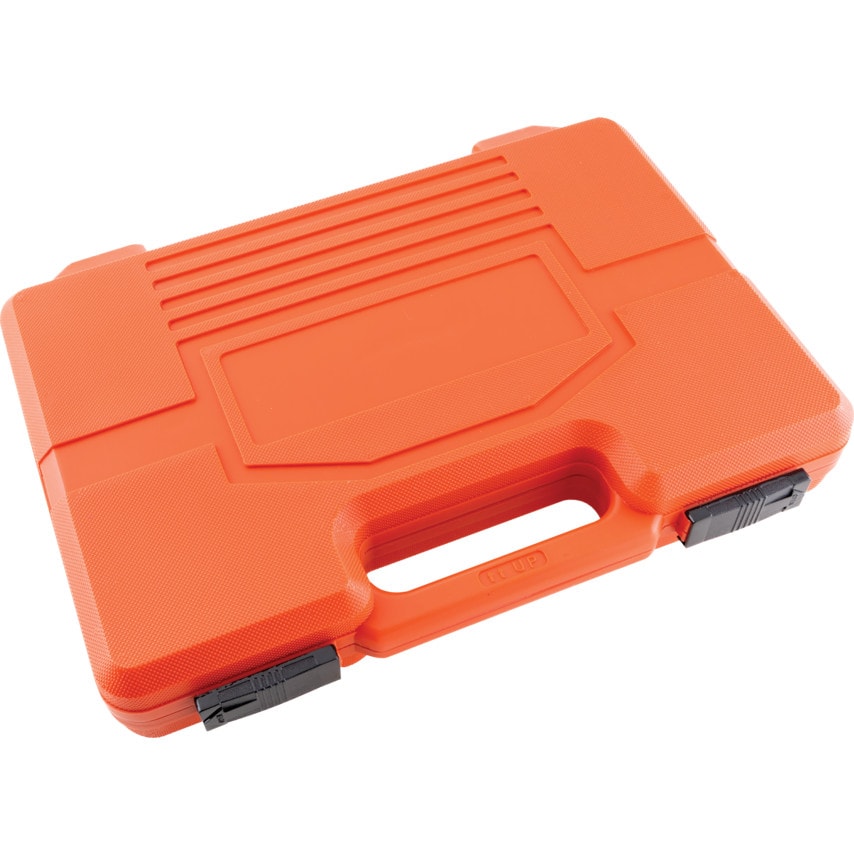

Supplied in a fitted case with slide locking clips & handle.

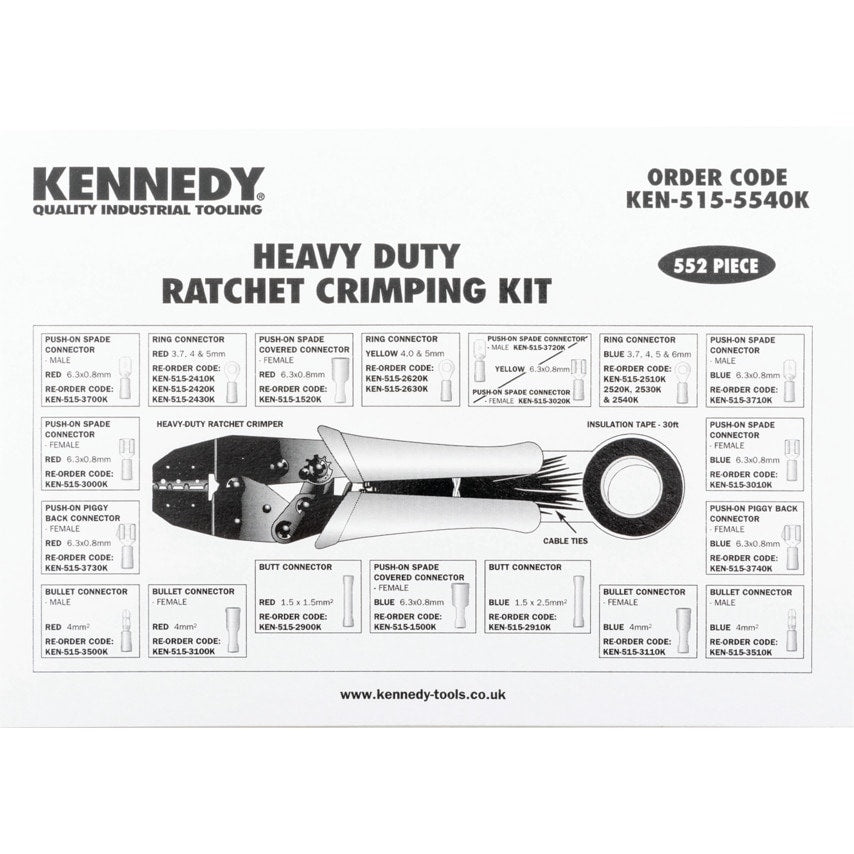

Kit contents:
Heavy duty ratchet crimper
Black insulation tape: 19mm x 9m
Black cable ties: 2.5 x 100mm (50pcs)
Ring connectors:
Red - 3.7mm (14pcs), 4mm (13pcs), 5mm (13pcs).
Blue - 3.7mm (12pcs), 4mm (12pcs), 5mm (12pcs), 6mm (25pcs),
Yellow - 4mm (13pcs), 5mm (12pcs).
Butt connectors: Red (25pcs) - 1.5 x 1.5mm2,
Blue (25pcs) - 1.5 x 2.5mm2.
Push-on spade connectors: - MALE:
Red (25Pcs), Blue (25Pcs) Yellow (12Pcs) - 6.3 x 0.8mm.
Push-on spade connectors: - FEMALE:
Red (25Pcs), Blue (25Pcs), Yellow (12Pcs) 6.3 x 0.8mm.
Push-on spade covered connectors: - FEMALE:
Red (25pcs), Blue (25pcs) - 6.3 x 0.8mm.
Push-on piggy-back connectors: - FEMALE:
Red (25pcs), Blue (25pcs) - 6.3 x 0.8mm.
Bullet connectors: - MALE: Red (25pcs), Blue (25pcs) - 4mm.
Bullet connectors: - FEMALE: Red (25pcs), Blue (25pcs) - 4mm.
| Non Sparking | No |
| Number of Pieces | 552 |
| Type | Crimping Tool Kit |
| Compatible Connector | Insulated Terminals |
| Capacity | Blue Connector |
| Jaw Material | Steel |
| Tool Material | Steel |
| Handle Cover Material | PVC |
| Includes | (12) Push-On Spade Connectors - Female - Yellow | (12) Push-On Spade Connectors - Male - Yellow | (12) Ring Connectors - Blue - 3.7mm | (12) Ring Connectors - Blue - 4mm | (12) Ring Connectors - Blue - 5mm | (12) Ring Connectors - Yellow - 5mm | (13) Ring Connectors - Red - 4mm | (13) Ring Connectors - Red - 5mm | (13) Ring Connectors - Yellow - 4mm | (14) Ring Connectors - Red - 3.7mm | (25) Bullet Connectors - Female - Blue | (25) Bullet Connectors - Female - Red | (25) Bullet Connectors - Male - Blue | (25) Bullet Connectors - Male - Red | (25) Butt Connectors - Blue | (25) Butt Connectors - Red | (25) Push-On Piggy-Back Connectors - Female - Blue | (25) Push-On Piggy-Back Connectors - Female - Red | (25) Push-On Spade Connectors - Female - Blue | (25) Push-On Spade Connectors - Female - Red | (25) Push-On Spade Connectors - Male - Blue | (25) Push-On Spade Connectors - Male - Red | (25) Push-On Spade Covered Connectors - Female - Blue | (25) Push-On Spade Covered Connectors - Female - Red | (25) Ring Connectors - Blue - 6mm | (50) Black Cable Ties | Black Insulation Tape | Heavy Duty Ratchet Crimper | Supplied in a fitted case |
| Overall Length | 220mm |
