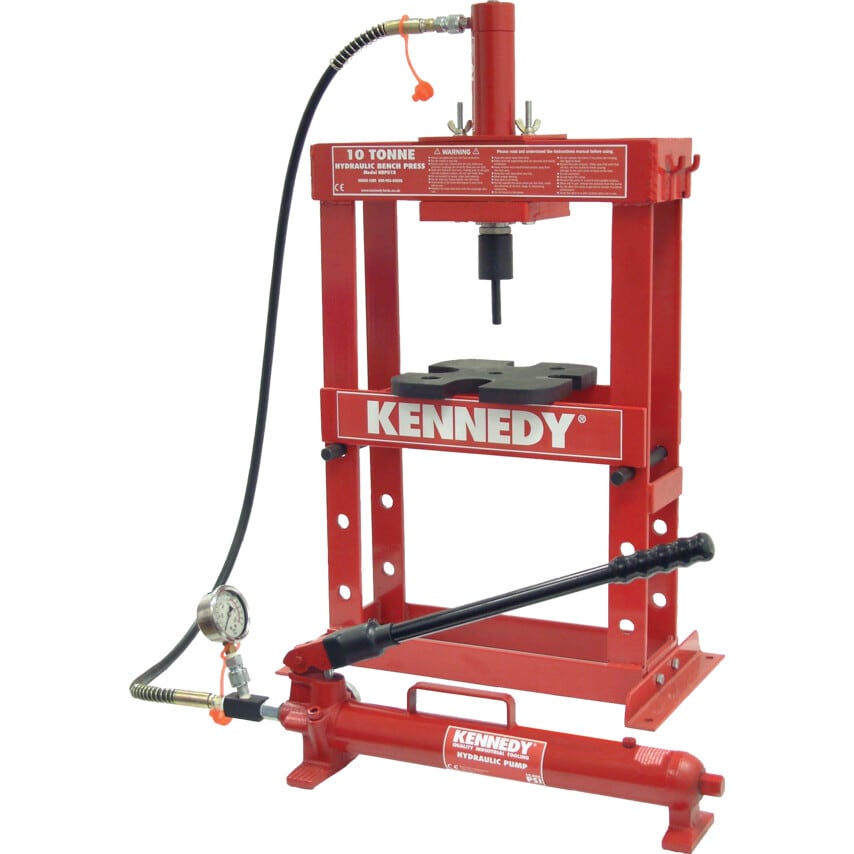

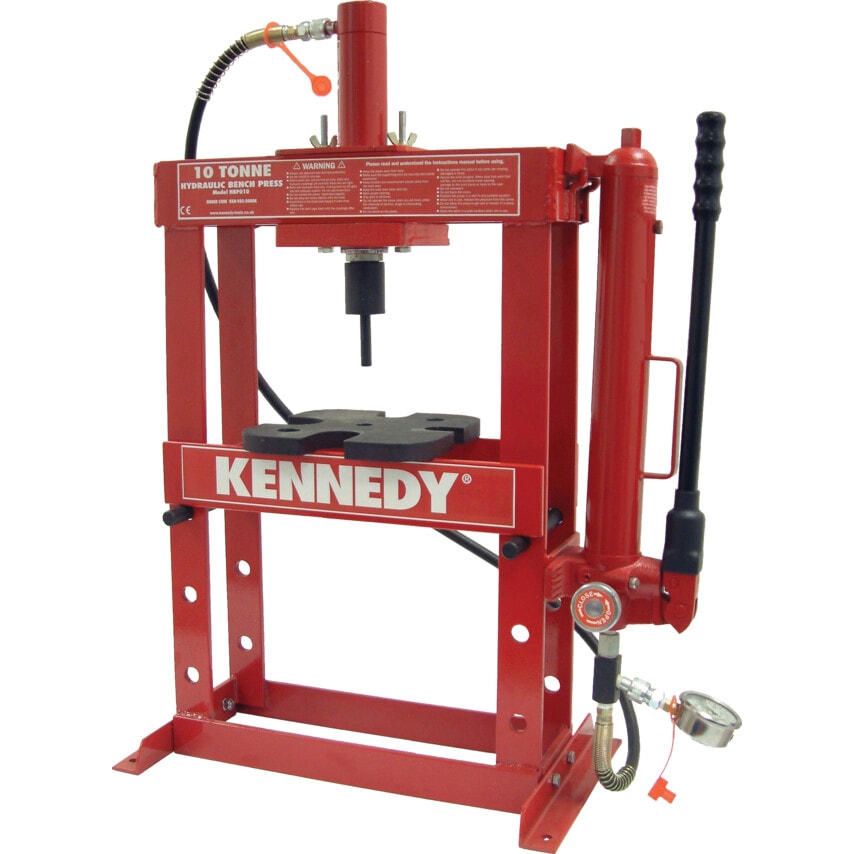

Ideal for pressing, bending and extruding. Built for tough daily use in industrial and automotive workshops. Manufactured welded steel frame with two end braces for stability and a fully adjustable work bed providing flexibility and convenience. Fitted with a detachable pump and ram allowing hydraulics to be used for other purposes when the press is not being used. Hydraulic gauge included.
Capacity: 10 tonnes.
Weight: 47kg
These hydraulic presses are ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, forming, punching and shearing.
Model number HBP010.
Capacity: 10 Tonne.
Ram stroke: 150mm.
Extension screw: 60mm.
Max height of ram to table: 300mm.
Min height of ram to table: 90mm.
Table aperture: 140mm.
Working table width: 360mm.
Overall height: 895mm.
Hydraulic gauge included: Yes.
Weight: 47kg.
| Overall Width | 480mm |
| Ram Stroke | 150mm |
| Overall Height | 895mm |
| Table Aperture | 140mm |
| Product Type | Bench Press |
| Weight Each | 47kg |
| Base Size (W x D) | 545 x 305mm |
| Working Table Width | 360mm |
| Capacity | 10 tonnes |
| Min/Max Height of Ram to Table | 90 to 300mm |
| MFR Part No. | HBP010 |
| Work Bed Adjustable Height | 3 x 100mm |
| Additional Features | Hydraulic Guage Included | Ideal For Pressing; Bending; Extruding |
