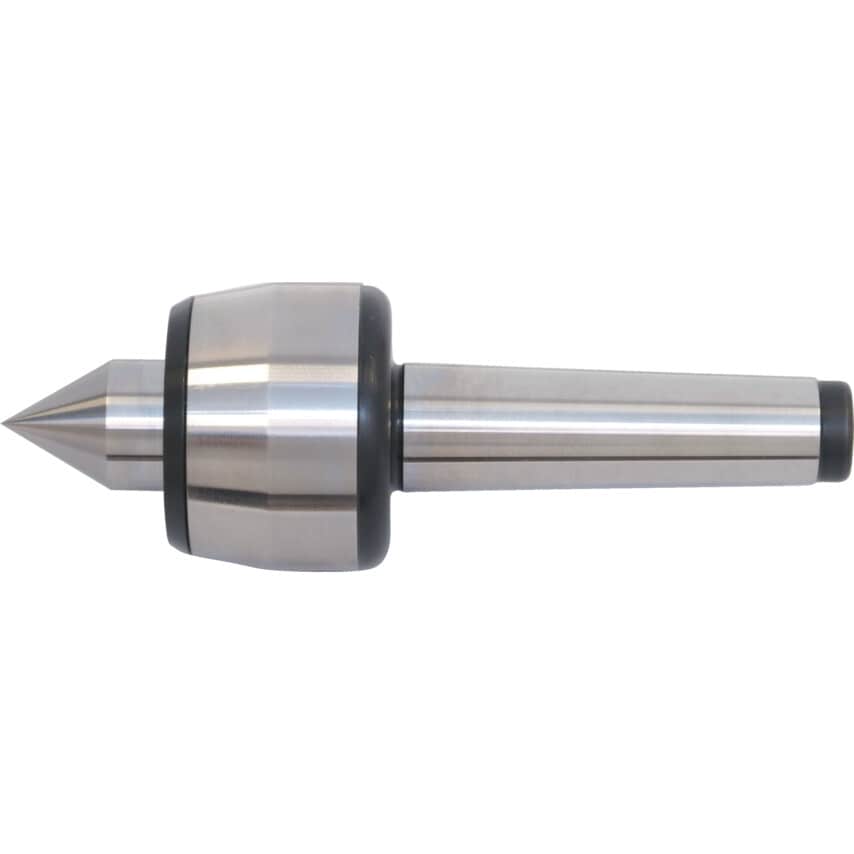

Manufactured from high alloy steel hardened and tempered then precision ground externally. Precision bearings are fitted as standard and the centres have a 60 point. Mounting Tapers are accurate to DIN228 Form A, Tolerance Class AT5.
Maximum runout:
No.1 to 4 taper: 0.005mm.
No.5 to 6 taper: 0.010mm.
| Maximum Radial Load | 280rpm |
| Radial Load @100 | 800rpm |
| Weight | 3kg |
| Axial Load @3000 | 230rpm |
| Maximum RPM | 3000rpm |
| Axial Load @100 | 570rpm |
| Type | Revolving Centre |
| Morse Taper | 5 |
