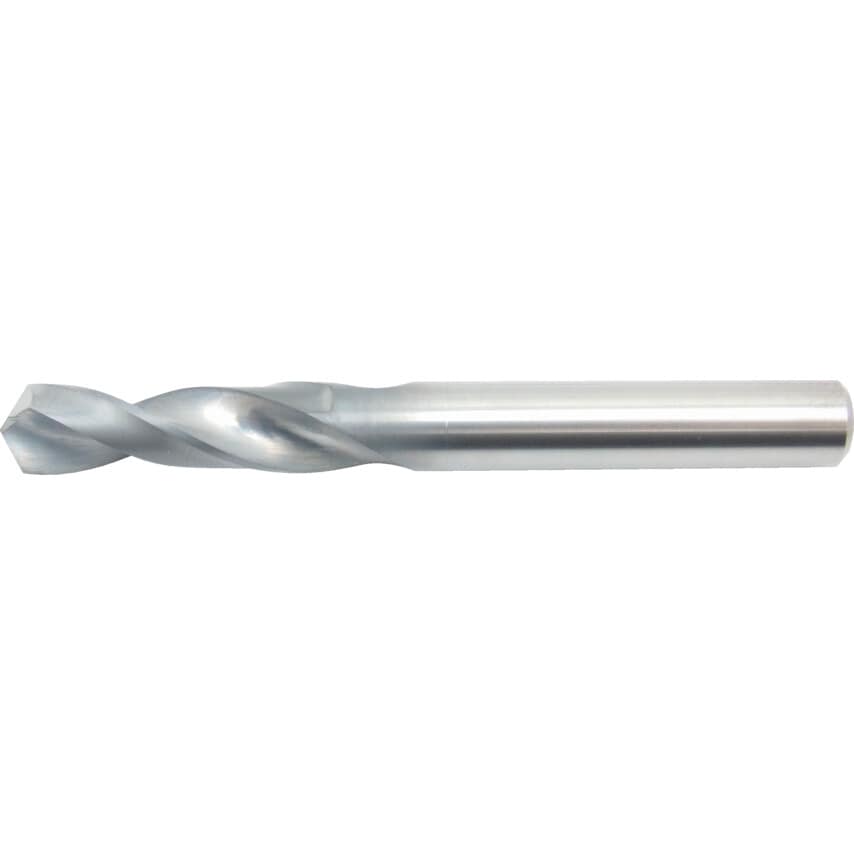

Carbide Straight Shank Stub Drills
Metric
For drilling into steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous materials and abrasive plastic. Point angle: 118, helix angle: 30, tolerance of diameter: h7, tolerance of shank: h6. Manufactured toDIN 6539.
Tolerances:
Cutting Dia.+ 0.000mm - 0.015mm.
Shank Dia.+ 0.000mm - 0.030mm.
| Number of Flutes | 2 |
| Point Angle | 118\u00b0 |
| Overall Length | 38mm |
| Helix Angle | 30\u00b0 |
| Finish/Coating | Bright |
| Material | Carbide |
| Drill Diameter Tolerance | H7 |
| Standards Met | DIN 6539 |
| Flute Type | Spiral |
| Drill Diameter | 2mm |
| Cutting Direction | Right Hand |
| Number of Pieces | 1 |
| Helix Type | Normal Helix |
| System of Measurement | Metric |
| Flute Length | 12mm |
| Drill Diameter Metric | 2 |
