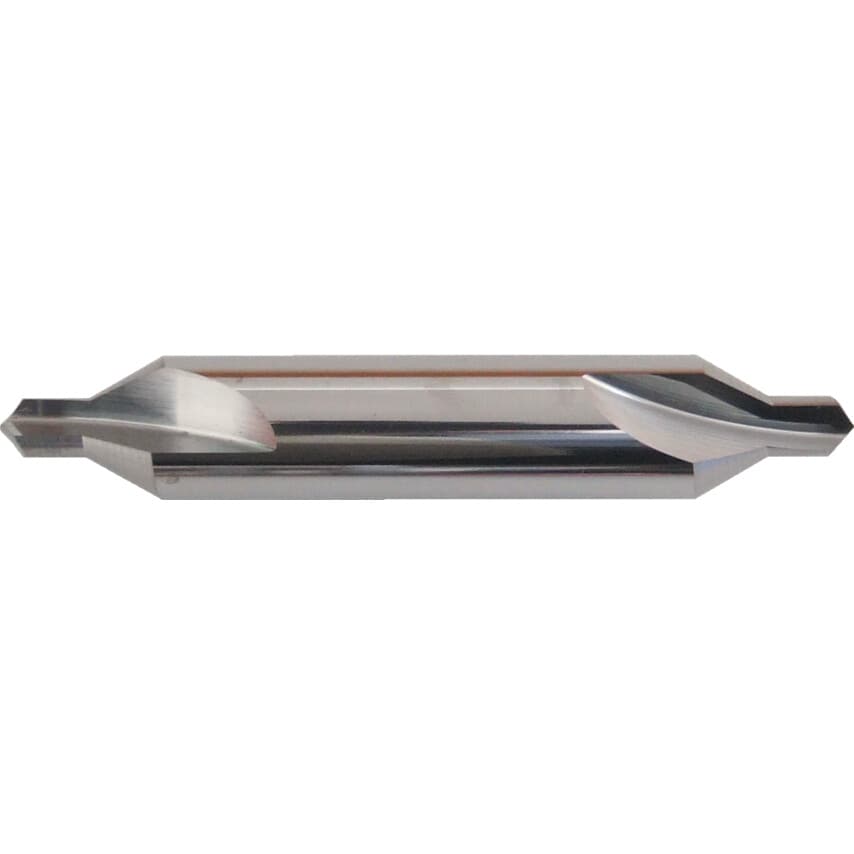

Carbide centre drills are used to produce 60 centres in components for subsequent manufacturing operations to be carried out. Thanks to their solid carbide construction tool life is extended and difficult materials may be drilled.
Features and Benefits
Solid carbide construction for increased tool hardness
Suitable for use on difficult to drill materials
Typical Applications
Centre holes
Difficult materials
Standards
Manufactured to BS328
| Trade Size | No.1 |
| Material | Carbide |
| Overall Length | 02/01/2002in |
| Finish/Coating | Uncoated |
| Body Diameter | 1/8in |
| Maximum Drill Point Length | 5/64in |
| Number of Pieces | 1 |
| Cutting Style | Plain |
| Countersink Angle | 60\u00b0 |
| Drill Point Diameter | 3/64in |
| Shank Type | Plain Round |
| Drill Point Angle | 118\u00b0 |
| Minimum Drill Point Length | 1/16in |
| Standards Met | BS 328 |
