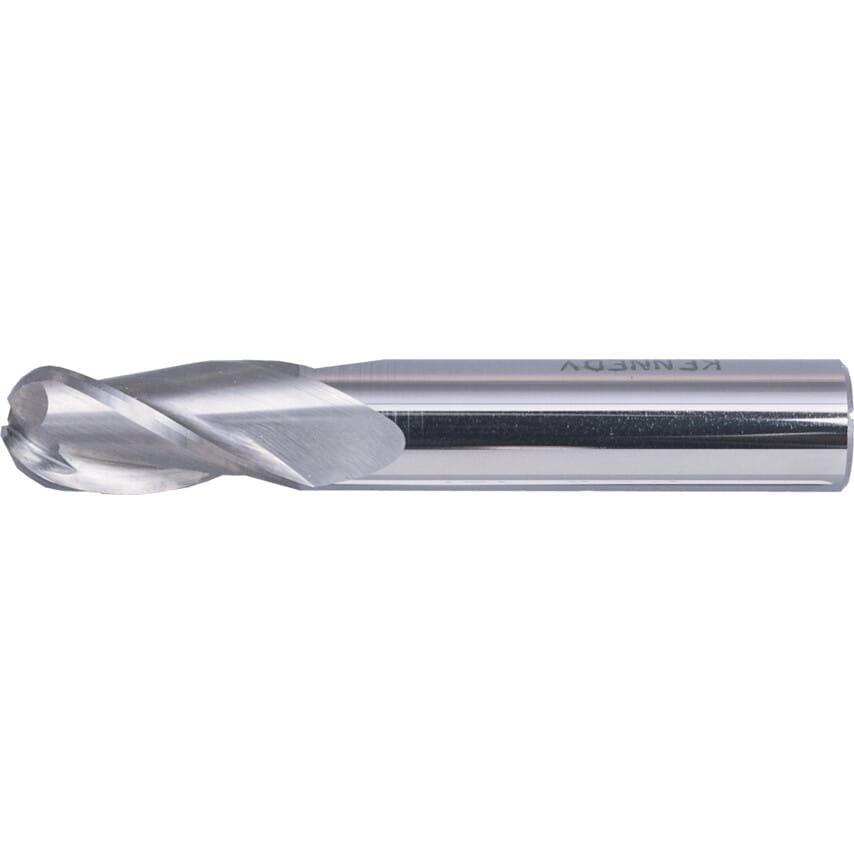

Regular Series - 3 Flute - Metric
Offer a combination of advantages achieved with two and four flutes giving profile and peripheral milling capability in addition to slotting and plunging. Chatter is also significantly reduced. Centre cutting as standard. Manufactured to Ansi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Overall Length | 50mm |
| Material | Carbide |
| Shank Diameter | 6mm |
| Helix Direction | Right Hand |
| Shank Type | Plain Round |
| Milling Cutter Type | End Mills |
| Plunge Type | Centre Cutting |
| MFR Part No. | E599911119 |
| Cutting Direction | Right Hand |
| Coolant Delivery | External |
| Standards Met | ANSI Standards |
| End Mill Type | Slot Drill |
| Number of Flutes | 3 |
| Material Grade | Micrograin |
| Reach Type | Standard Neck |
| Number of Cutting Ends | 1 |
| Material Application | Nonferrous Metals | Nonferrous Metals | Other Soft Materials |
| Flute Type | Helical |
| Ball Nose Type | Ball Nose Slot Drill |
| Finish/Coating | Uncoated |
| Cutter Diameter | 5mm |
| Length Type | Regular |
| Flute Length | 16mm |
| Cutter Style | Ball Nose |
| System of Measurement | Metric |
| Milling Application | Plunging | Routing | Slotting |
