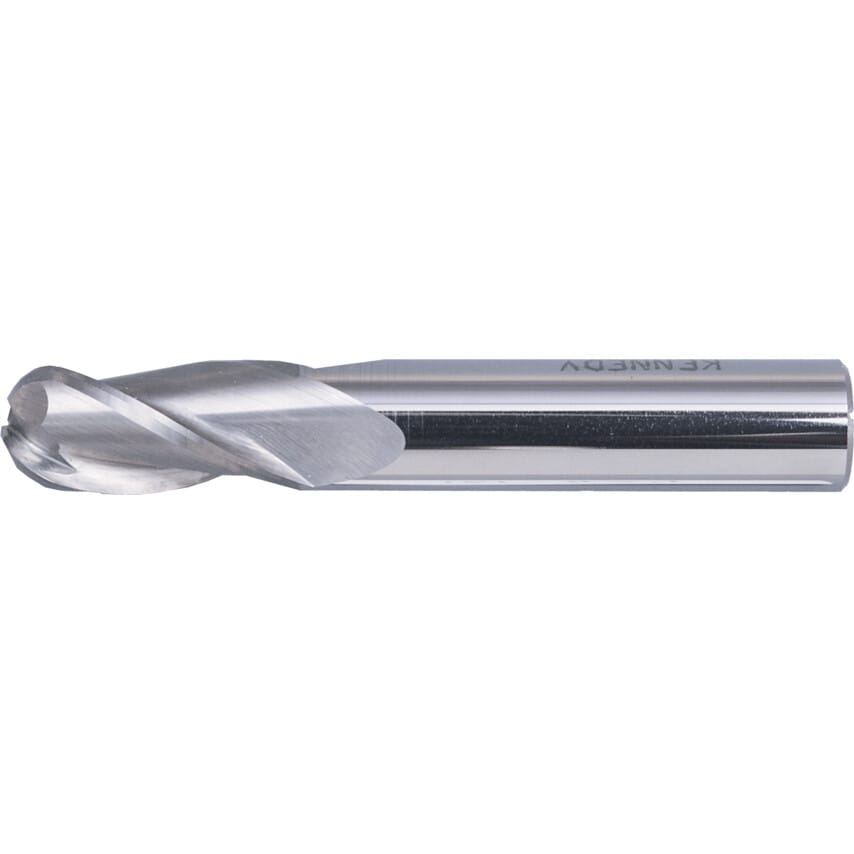

Regular Series - 3 Flute - Metric
Offer a combination of advantages achieved with two and four flutes giving profile and peripheral milling capability in addition to slotting and plunging. Chatter is also significantly reduced. Centre cutting as standard. Manufactured to Ansi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Cutter Style | Ball Nose |
| Number of Flutes | 3 |
| System of Measurement | Metric |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| End Mill Type | Slot Drill |
| Ball Nose Type | Ball Nose Slot Drill |
| Plunge Type | Centre Cutting |
| MFR Part No. | E599911118 |
| Material | Carbide |
| Overall Length | 50mm |
| Length Type | Regular |
| Material Grade | Micrograin |
| Flute Type | Helical |
| Milling Application | Plunging | Routing | Slotting |
| Shank Type | Plain Round |
| Milling Cutter Type | End Mills |
| Standards Met | ANSI Standards |
| Finish/Coating | Uncoated |
| Material Application | Nonferrous Metals | Nonferrous Metals | Other Soft Materials |
| Coolant Delivery | External |
| Reach Type | Standard Neck |
| Number of Cutting Ends | 1 |
| Flute Length | 14mm |
| Cutter Diameter | 4mm |
| Shank Diameter | 4mm |
