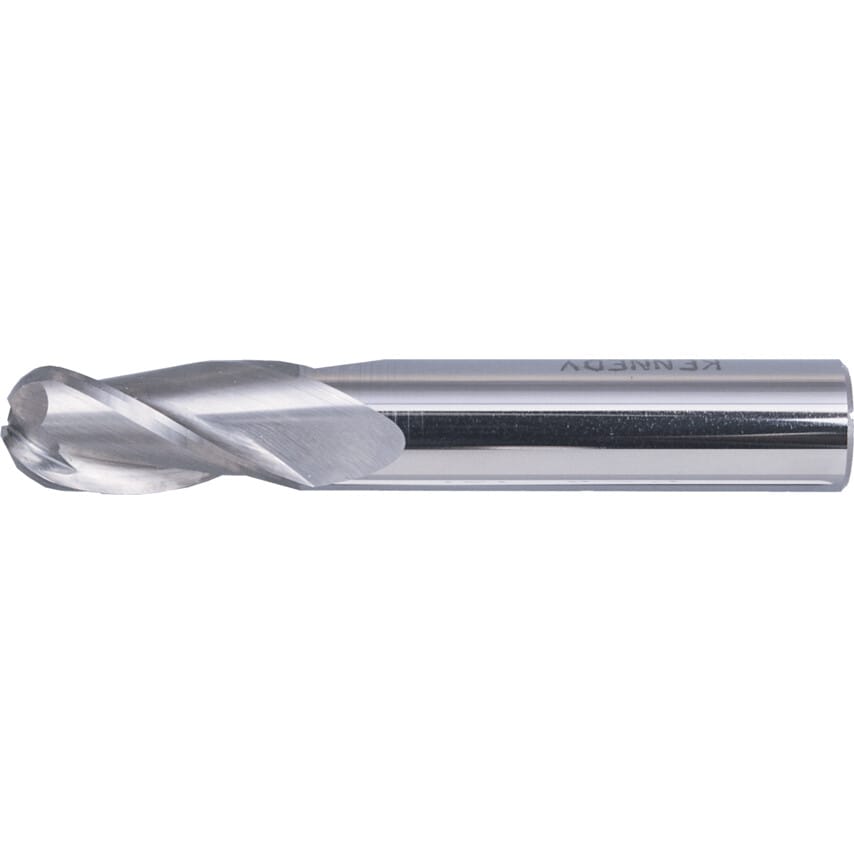

Regular Series - 3 Flute - Metric
Offer a combination of advantages achieved with two and four flutes giving profile and peripheral milling capability in addition to slotting and plunging. Chatter is also significantly reduced. Centre cutting as standard. Manufactured to Ansi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Cutter Diameter | 3mm |
| Flute Length | 10mm |
| Cutter Style | Ball Nose |
| Standards Met | ANSI Standards |
| Finish/Coating | Uncoated |
| Shank Diameter | 3mm |
| Material | Carbide |
| System of Measurement | Metric |
| Material Grade | Micrograin |
| MFR Part No. | E599911117 |
| Reach Type | Standard Neck |
| Number of Cutting Ends | 1 |
| Milling Cutter Type | End Mills |
| Shank Type | Plain Round |
| Ball Nose Type | Ball Nose Slot Drill |
| Flute Type | Helical |
| Length Type | Regular |
| Material Application | Nonferrous Metals | Nonferrous Metals | Other Soft Materials |
| Milling Application | Plunging | Routing | Slotting |
| Coolant Delivery | External |
| End Mill Type | Slot Drill |
| Number of Flutes | 3 |
| Overall Length | 38mm |
| Helix Direction | Right Hand |
| Cutting Direction | Right Hand |
| Plunge Type | Centre Cutting |
