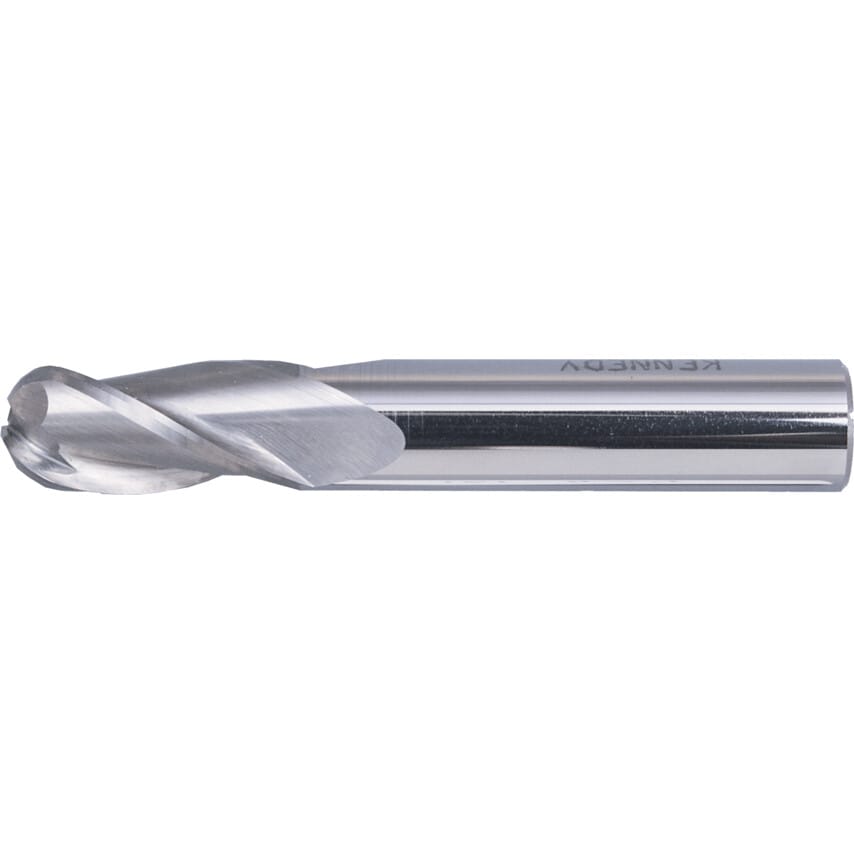

Regular Series - 3 Flute - Metric
Offer a combination of advantages achieved with two and four flutes giving profile and peripheral milling capability in addition to slotting and plunging. Chatter is also significantly reduced. Centre cutting as standard. Manufactured to Ansi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Finish/Coating | Uncoated |
| Cutting Direction | Right Hand |
| Shank Diameter | 8mm |
| Flute Type | Helical |
| Number of Flutes | 3 |
| Shank Type | Plain Round |
| System of Measurement | Metric |
| Ball Nose Type | Ball Nose Slot Drill |
| Standards Met | ANSI Standards |
| Milling Application | Plunging | Routing | Slotting |
| Number of Cutting Ends | 1 |
| Reach Type | Standard Neck |
| End Mill Type | Slot Drill |
| Material | Carbide |
| Length Type | Regular |
| Cutter Style | Ball Nose |
| Helix Direction | Right Hand |
| Milling Cutter Type | End Mills |
| Coolant Delivery | External |
| MFR Part No. | E599911122 |
| Material Application | Nonferrous Metals | Nonferrous Metals | Other Soft Materials |
| Cutter Diameter | 8mm |
| Flute Length | 20mm |
| Plunge Type | Centre Cutting |
| Material Grade | Micrograin |
| Overall Length | 63mm |
