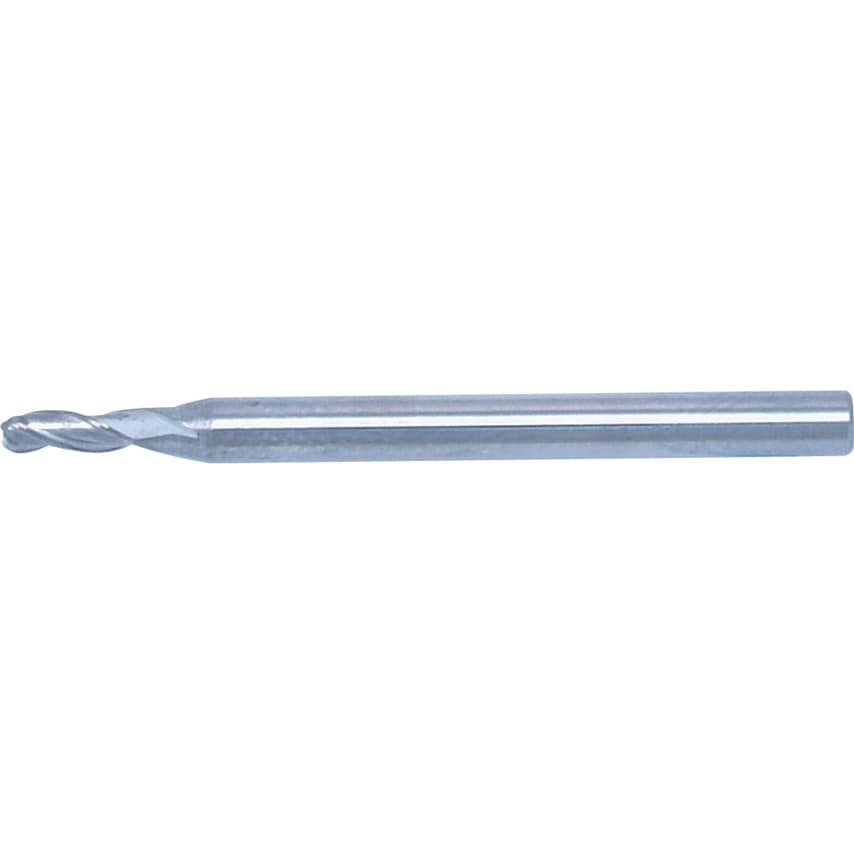

Regular Series - 3 Flute - Metric
Offer a combination of advantages achieved with two and four flutes giving profile and peripheral milling capability in addition to slotting and plunging. Chatter is also significantly reduced. Centre cutting as standard. Manufactured to Ansi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Flute Type | Helical |
| Material Grade | Micrograin |
| Ball Nose Type | Ball Nose Slot Drill |
| Reach Type | Standard Neck |
| Overall Length | 38mm |
| End Mill Type | Slot Drill |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Length Type | Regular |
| System of Measurement | Metric |
| Shank Diameter | 3mm |
| Milling Cutter Type | End Mills |
| MFR Part No. | E599911116 |
| Helix Direction | Right Hand |
| Standards Met | ANSI Standards |
| Cutter Diameter | 2mm |
| Cutter Style | Ball Nose |
| Flute Length | 6mm |
| Milling Application | Plunging | Routing | Slotting |
| Finish/Coating | Uncoated |
| Plunge Type | Centre Cutting |
| Material Application | Nonferrous Metals | Nonferrous Metals | Other Soft Materials |
| Shank Type | Plain Round |
| Number of Cutting Ends | 1 |
| Number of Flutes | 3 |
