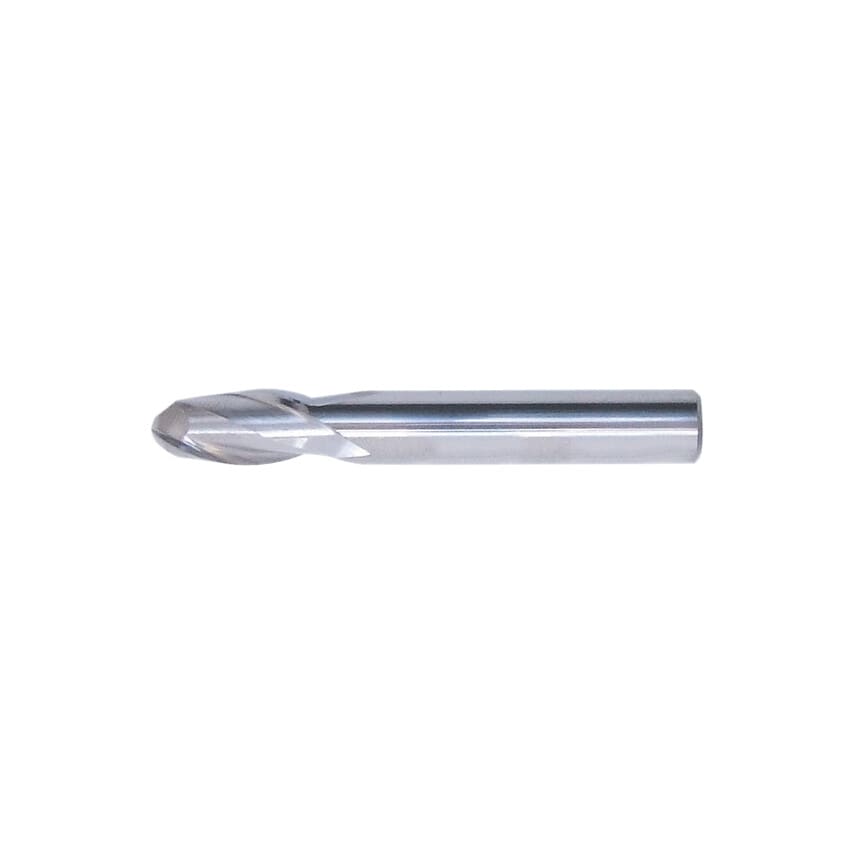

Regular Series - 2 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in most materials including brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Overall Length | 57.0mm |
| Material Grade | Micrograin |
| Flute Type | Helical |
| Shank Diameter | 6.0mm |
| Coolant Delivery | External |
| Milling Cutter Type | Slot Drill |
| Cutting Direction | Right Hand |
| Cutter Diameter | 3.0mm |
| Cutter Style | Ball Nose |
| Material | Carbide |
| Flute Length | 7.0mm |
| End Mill Type | Slot Drill |
| Standards Met | USCTI Standards |
| Milling Application | Plunging | Routing | Slotting |
| ISO Designation | N |
| Finish/Coating | Uncoated |
| Length Type | Regular |
| System of Measurement | Metric |
| Shank Type | Plain Round |
| Number of Flutes | 2 |
| Material Application | Aluminium | Other Soft Materials | Other Soft Materials |
