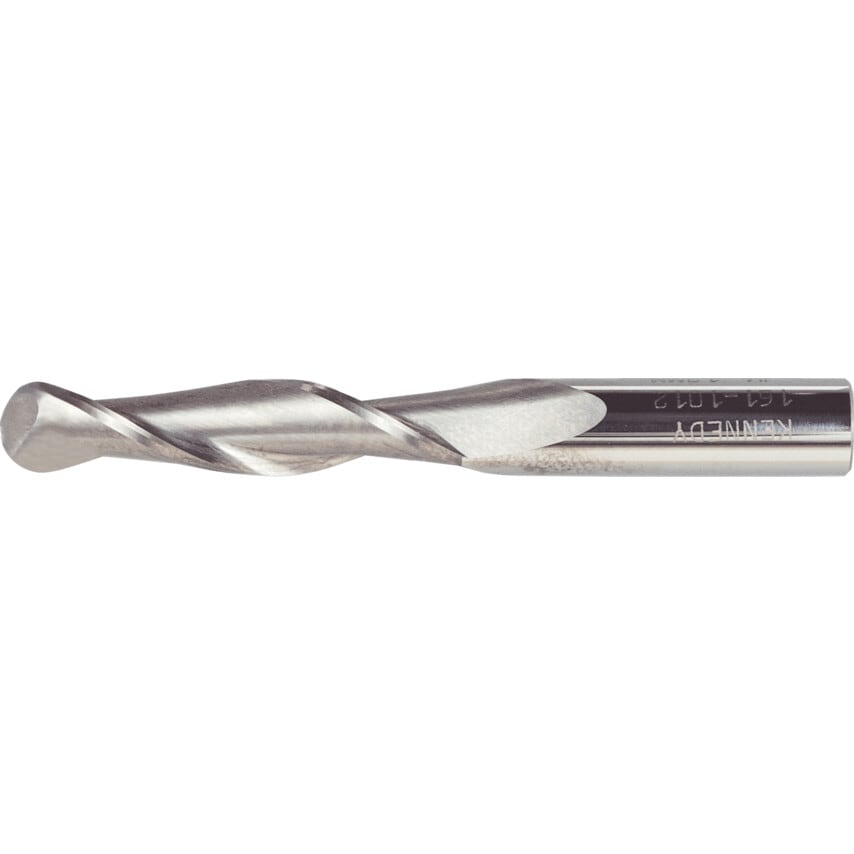

Long Series - 2 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in most materials including brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Coolant Delivery | External |
| Flute Type | Helical |
| Overall Length | 75.0mm |
| Plunge Type | Non-centre Cutting |
| End Mill Type | Slot Drill |
| Product Type | Ball Nosed Slot Drills |
| Length Type | Long |
| Number of Flutes | 2 |
| Shank Diameter | 4.0mm |
| Shank Type | Plain Round |
| Cutting Direction | Right |
| MFR Part No. | E5455040 |
| Finish/Coating | Uncoated |
| Flute Length | 30.0mm |
| Cutter Diameter | 4.0mm |
| Material | Solid Carbide |
| Standards Met | USCTI Standards |
