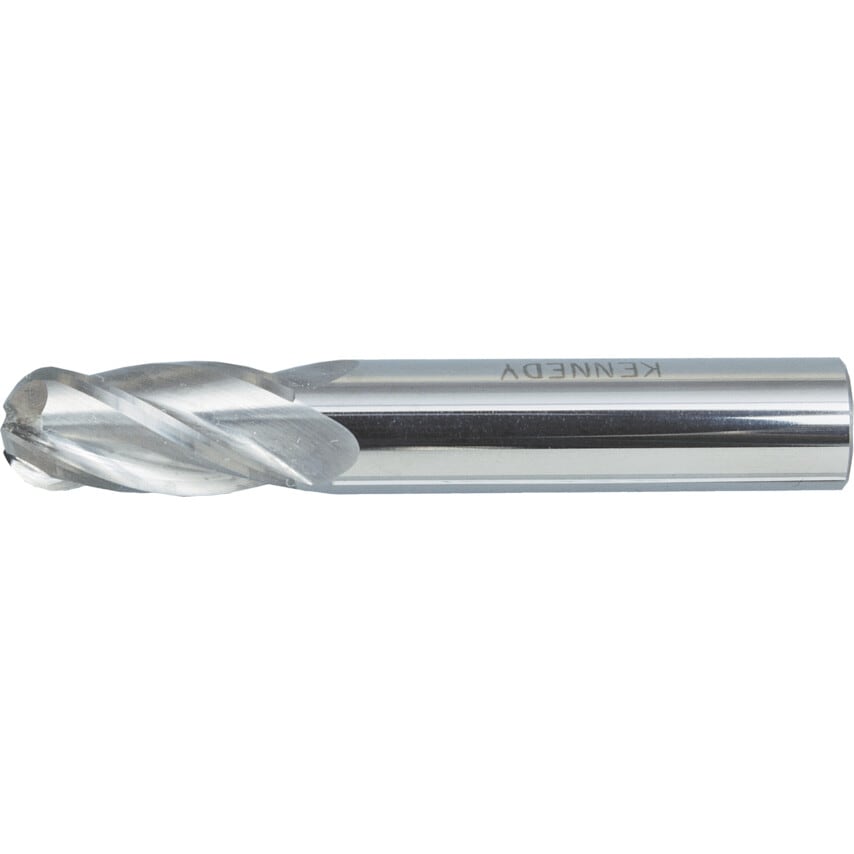

Regular Series - 4 Flute - Metric
For maximum strength when milling harder materials where rapid swarf removal is not needed. Four flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting as standard. Manufactured to ANSI Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Overall Length | 50mm |
| Material | Solid Carbide |
| Milling Application | High-feed Milling |
| Shank Type | Plain Round |
| Cutter Diameter | 5mm |
| Cutting Diameter (mm) | 5mm |
| System of Measurement | Metric |
| Flute Length | 16mm |
| Length Type | Regular |
| Material Application | Alloy Steel | Aluminium | Aluminium Alloys | Brass | Bronze | Cast Iron | Stainless Steels | Steels |
| Cutting Direction | Right Hand |
| Milling Cutter Type | End Mills |
| Reach Type | Standard Neck |
| Standards Met | ANSI |
| Flute Type | Helical |
| Finish/Coating | Uncoated |
| Ball Nose Type | Ball Nose End Mill |
| Coolant Delivery | External |
| MFR Part No. | E563405002 |
| Cutter Style | Ball Nose |
| Number of Flutes | 4 |
| Plunge Type | Centre Cutting |
| Shank Diameter | 6mm |
