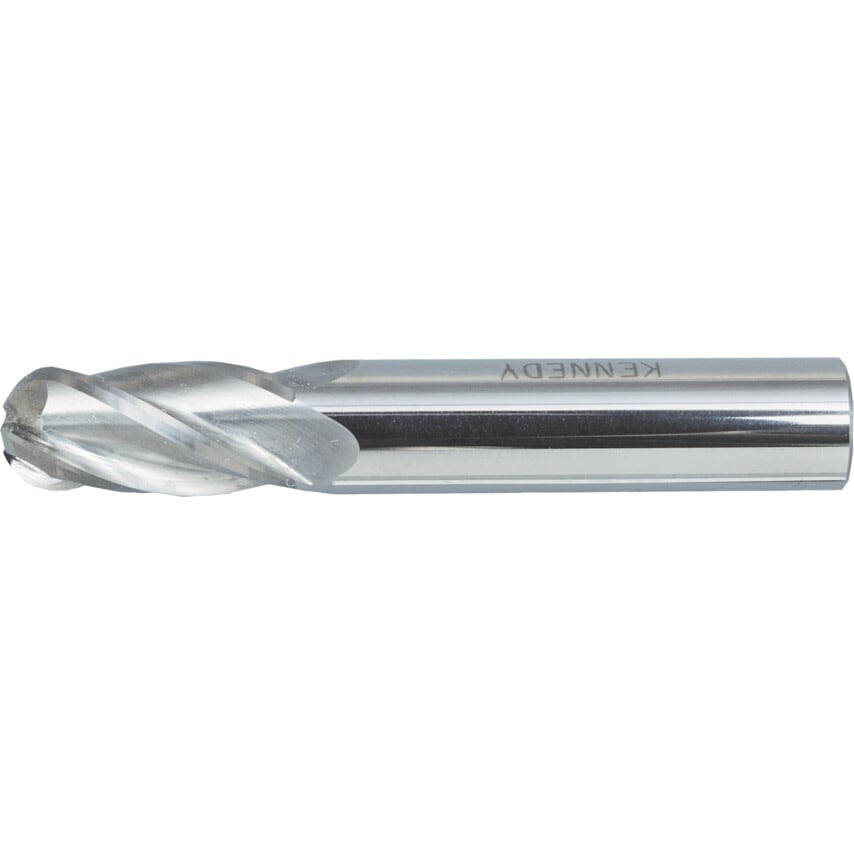

Regular Series - 4 Flute - Metric
For maximum strength when milling harder materials where rapid swarf removal is not needed. Four flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting as standard. Manufactured to ANSI Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Shank Type | Plain Round |
| Flute Type | Helical |
| Standards Met | ANSI |
| Cutting Diameter (mm) | 6mm |
| Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Material Application | Aerospace Alloys | Aluminium | Aluminium Alloys | Brass | Bronze | Cast Iron | Copper | Stainless Steels |
| Shank Diameter | 6mm |
| Milling Cutter Type | End Mills |
| MFR Part No. | E563406002 |
| Number of Flutes | 4 |
| Milling Application | High-feed Milling |
| Ball Nose Type | Ball Nose End Mill |
| Flute Length | 19mm |
| Length Type | Regular |
| Coolant Delivery | External |
| Plunge Type | Centre Cutting |
| Cutter Style | Ball Nose |
| System of Measurement | Metric |
| Reach Type | Standard Neck |
| Overall Length | 50mm |
| Cutter Diameter | 6mm |
| Finish/Coating | Uncoated |
