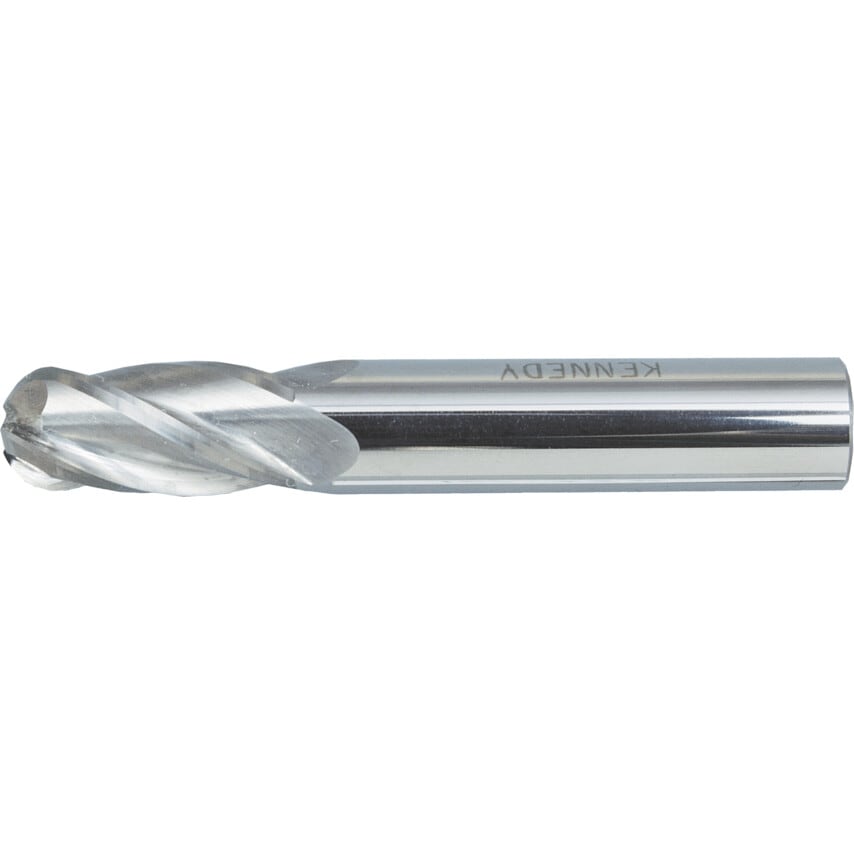

Regular Series - 4 Flute - Inch
For maximum strength when milling harder materials where rapid swarf removal is not needed. Four flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting as standard. Manufactured to ANSI Standards.
Inch Tolerances
Diameter: Over 1/16 ~ up to 1/4. Tolerance: +0.000, -0.002.
Diameter: Over 1/4 ~ up to 1. Tolerance: +0.000, -0.003.
| Cutter Style | Ball Nose |
| Coolant Delivery | External |
| Overall Length | 1-1/2in |
| Length Type | Regular |
| Material | Solid Carbide |
| System of Measurement | Inch |
| Cutter Diameter | 3/32in |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
| Material Application | Aerospace Alloys | Alloy Steel | Aluminium | Aluminium Alloys | Brass | Bronze | Cast Iron | Copper | Stainless Steels |
| Flute Type | Helical |
| Number of Flutes | 4 |
| Reach Type | Standard Neck |
| Milling Application | High-feed Milling |
| Shank Diameter | 1/8in |
| Cutting Diameter (in.) | 3/32in |
| Shank Type | Plain Round |
| Standards Met | ANSI |
| MFR Part No. | E5250006 |
| Flute Length | 3/8in |
| Milling Cutter Type | End Mills |
| Plunge Type | Centre Cutting |
| Ball Nose Type | Ball Nose End Mill |
