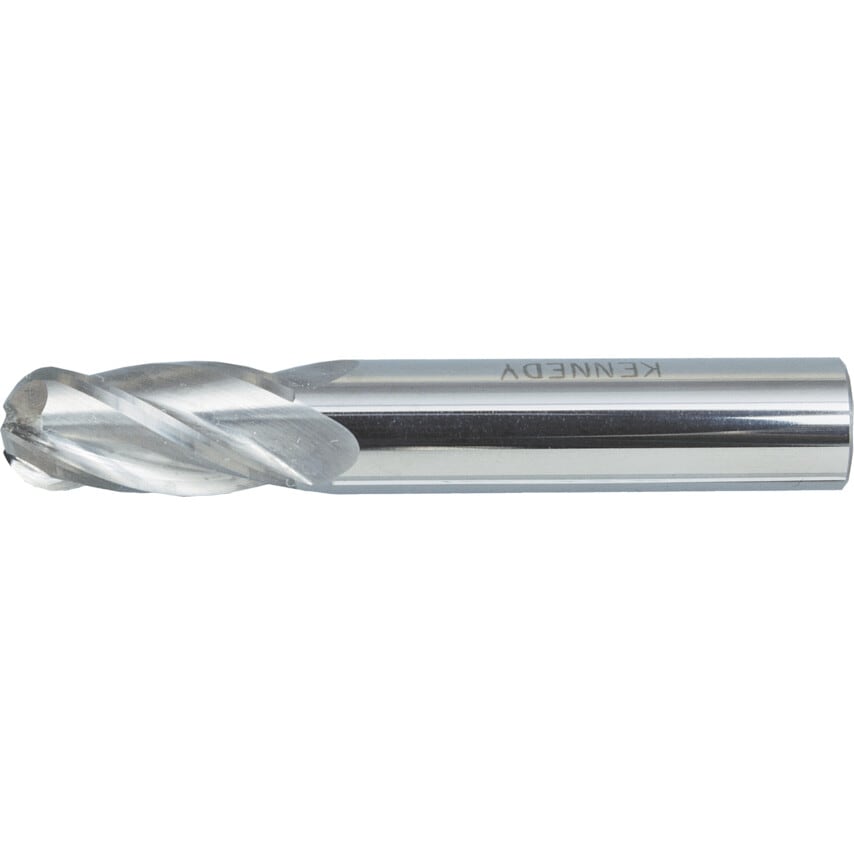

Long Series - 4 Flute - Metric
For maximum strength when milling harder materials where rapid swarf removal is not needed. Four flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting as standard. Manufactured to ANSI Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Plunge Type | Centre Cutting |
| Cutting Direction | Right Hand |
| Shank Type | Plain Round |
| Material | Carbide |
| Reach Type | Long |
| Cutter Style | Ball Nose |
| Standards Met | ANSI Standards |
| Finish/Coating | Uncoated |
| Cutter Diameter | 16mm |
| Overall Length | 150mm |
| Length Type | Long |
| Helix Direction | Right Hand |
| Coolant Delivery | External |
| Number of Flutes | 4 |
| Ball Nose Type | Ball Nose End Mill |
| Milling Cutter Type | End Mills |
| Shank Diameter | 16mm |
| System of Measurement | Metric |
| Flute Length | 75mm |
| Material Grade | Micrograin |
