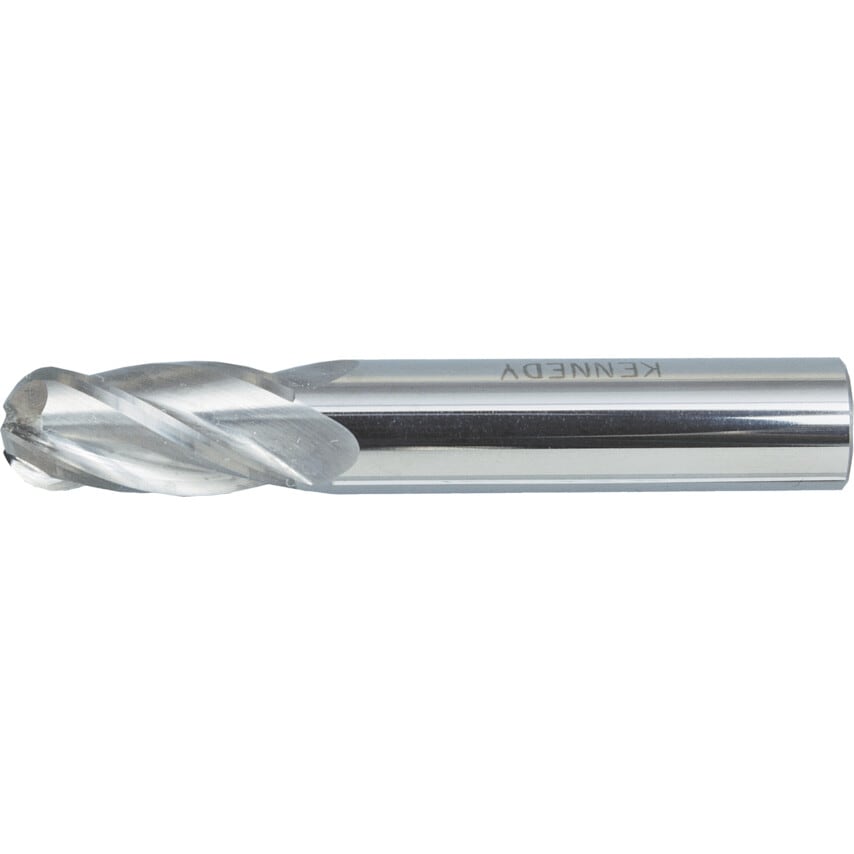

Long Series - 4 Flute - Metric
For maximum strength when milling harder materials where rapid swarf removal is not needed. Four flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting as standard. Manufactured to ANSI Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Standards Met | ANSI Standards |
| Shank Type | Plain Round |
| Milling Cutter Type | End Mills |
| Material Grade | Micrograin |
| Flute Length | 25mm |
| Finish/Coating | Uncoated |
| Ball Nose Type | Ball Nose End Mill |
| Cutting Direction | Right Hand |
| Cutter Style | Ball Nose |
| Length Type | Long |
| Number of Flutes | 4 |
| Shank Diameter | 3mm |
| Material | Carbide |
| Helix Direction | Right Hand |
| Coolant Delivery | External |
| Cutter Diameter | 3mm |
| Overall Length | 75mm |
| Plunge Type | Centre Cutting |
| System of Measurement | Metric |
| Reach Type | Long |
