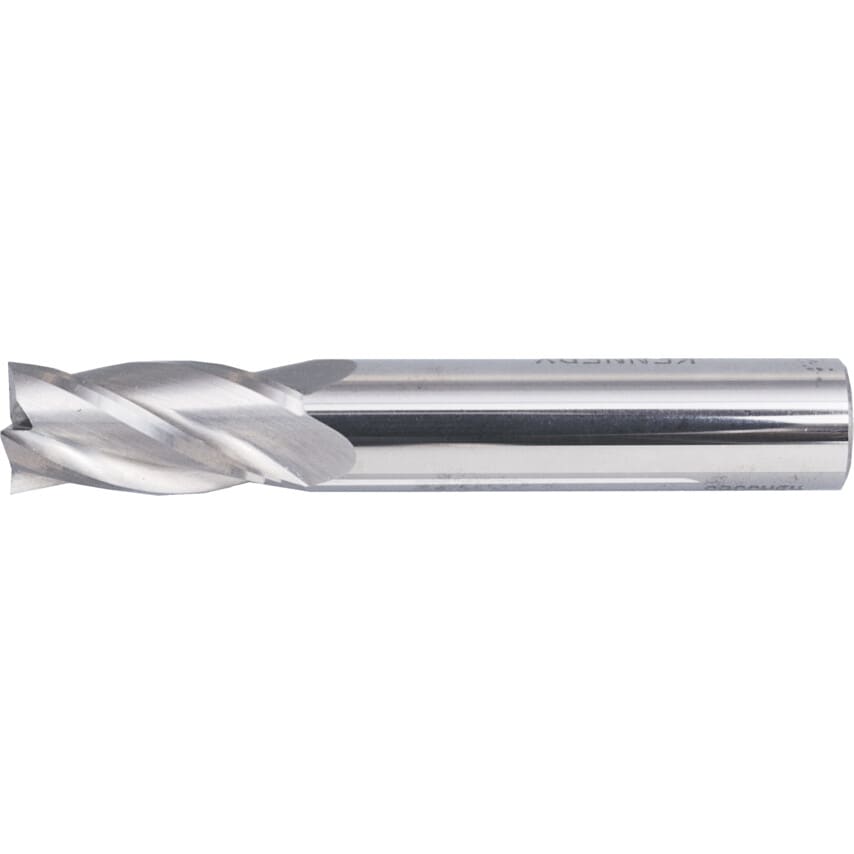

Centre cutting as standard. For maximum strength when milling harder materials where rapid swarf removal is not needed. 4 flute milling cutters have one of the strongest tooth structures available in solid cutters.
Features and Benefits
Carbide micrograin construction for increased toughness
4 flutes with strong tooth structure for excellent cutting performance
ideal for providing maximum strength when milling harder materials
Standards
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080
Manufactured to Works Standards
| Shank Diameter | 11.0mm |
| Coolant Delivery | External |
| Length Type | Regular |
| Milling Cutter Type | End Mills |
| Cutter Diameter Tolerance | H10 |
| Helix Angle | 30\u00b0 |
| Finish/Coating | Uncoated |
| Overall Length | 70.0mm |
| Shank Type | Plain Round |
| Product Type | End Mills |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Cutter Diameter | 11.0mm |
| MFR Part No. | E5432110 |
| Cutting Direction | Right Hand |
| Plunge Type | Centre Cutting |
| Flute Type | Helical |
| End Mill Type | End Mill |
| Number of Flutes | 4 |
| Flute Length | 22.0mm |
| Material | Carbide |
| Cutter Style | Square End |
