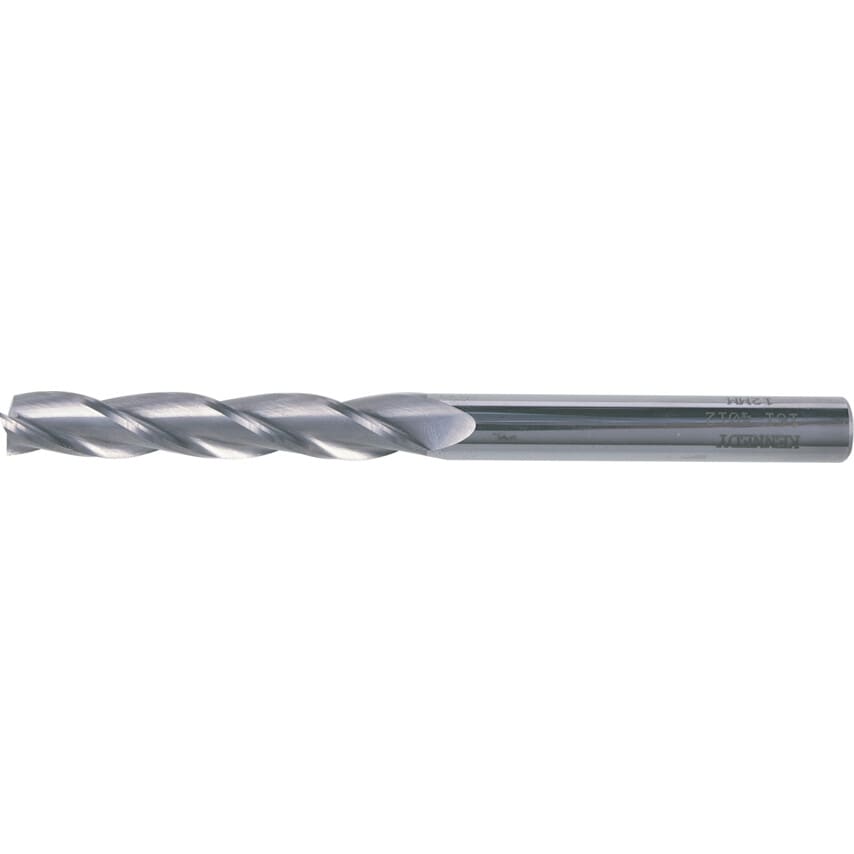

Long Series - 3 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Cutting Direction | Right Hand |
| Shank Diameter | 6.0mm |
| Overall Length | 75.0mm |
| System of Measurement | Metric |
| Cutter Style | Square End |
| Cutter Diameter Tolerance | H10 |
| Flute Type | Helical |
| Milling Application | Plunging | Routing | Slotting |
| Shank Type | Plain Round |
| Standards Met | USCTi |
| Cutter Diameter | 6.0mm |
| Plunge Type | Centre Cutting |
| Material | Carbide |
| Number of Flutes | 3 |
| End Mill Type | End Mill |
| Milling Cutter Type | End Mills |
| Product Type | Long Series End Mills |
| Finish/Coating | Uncoated |
| Flute Length | 25.0mm |
| Shank Diameter Tolerance | H6 |
| Length Type | Long |
| Coolant Delivery | External |
