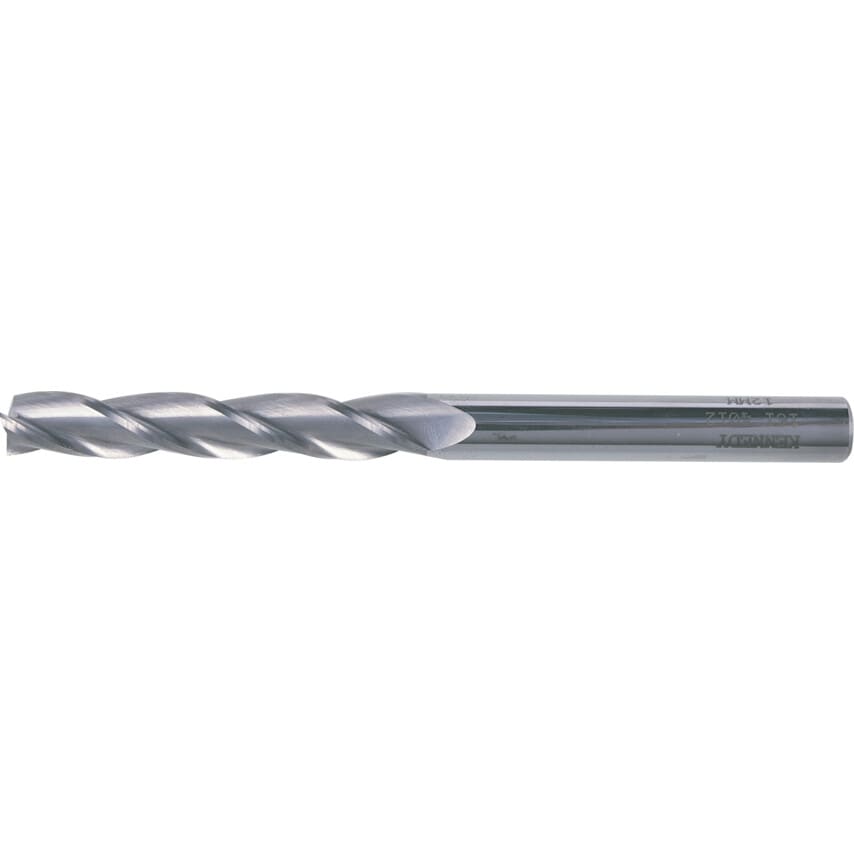

Long Series - 3 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Flute Type | Helical |
| Cutter Style | Square End |
| Product Type | End Mills |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Cutter Diameter | 8.0mm |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | H10 |
| Shank Type | Plain Round |
| End Mill Type | End Mill |
| Flute Length | 25.0mm |
| Milling Application | Plunging | Routing | Slotting |
| Milling Cutter Type | End Mills |
| Length Type | Long |
| Material | Carbide |
| Overall Length | 75.0mm |
| Finish/Coating | Uncoated |
| Number of Flutes | 3 |
| Standards Met | USCTi |
| Shank Diameter | 8.0mm |
| Plunge Type | Centre Cutting |
