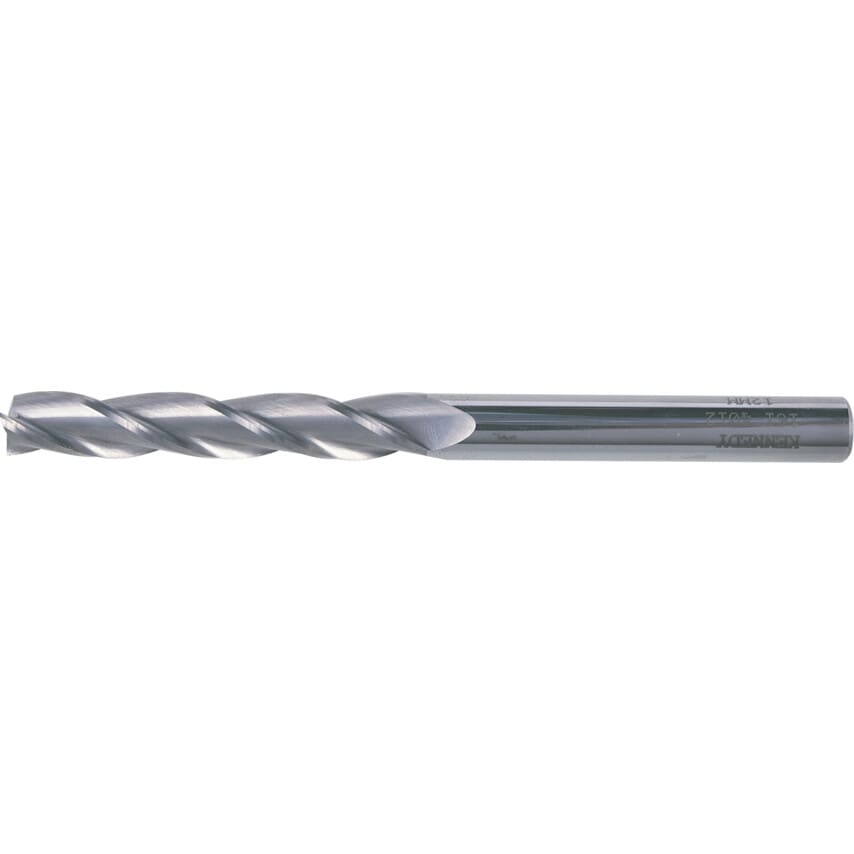

Long Series - 3 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Product Type | End Mills |
| Flute Type | Helical |
| Shank Diameter Tolerance | H6 |
| Cutting Direction | Right Hand |
| Milling Application | Plunging | Routing | Slotting |
| Cutter Style | Square End |
| Shank Type | Plain Round |
| Cutter Diameter Tolerance | H10 |
| Overall Length | 100.0mm |
| Flute Length | 38.0mm |
| Number of Flutes | 3 |
| Coolant Delivery | External |
| Material | Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter | 10.0mm |
| Plunge Type | Centre Cutting |
| Length Type | Long |
| Standards Met | USCTi |
| Milling Cutter Type | End Mills |
| Cutter Diameter | 10.0mm |
| System of Measurement | Metric |
| End Mill Type | End Mill |
