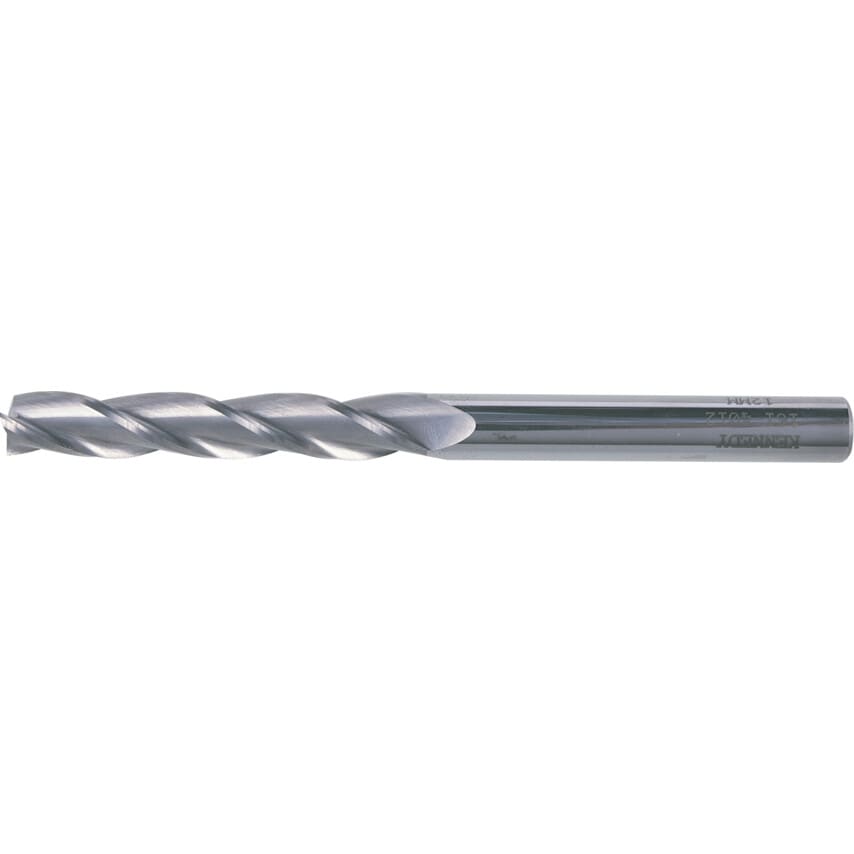

Long Series - 3 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Shank Diameter Tolerance | H6 |
| Milling Cutter Type | End Mills |
| Cutting Direction | Right Hand |
| End Mill Type | End Mill |
| Overall Length | 75.0mm |
| Cutter Diameter | 4.0mm |
| Shank Type | Plain Round |
| Cutter Style | Square End |
| Flute Length | 25.0mm |
| System of Measurement | Metric |
| Material | Carbide |
| Coolant Delivery | External |
| Plunge Type | Centre Cutting |
| Number of Flutes | 3 |
| Flute Type | Helical |
| Standards Met | USCTi |
| Product Type | End Mills |
| Finish/Coating | Uncoated |
| Length Type | Long |
| Shank Diameter | 4.0mm |
| Milling Application | Plunging | Slotting |
| Cutter Diameter Tolerance | H10 |
