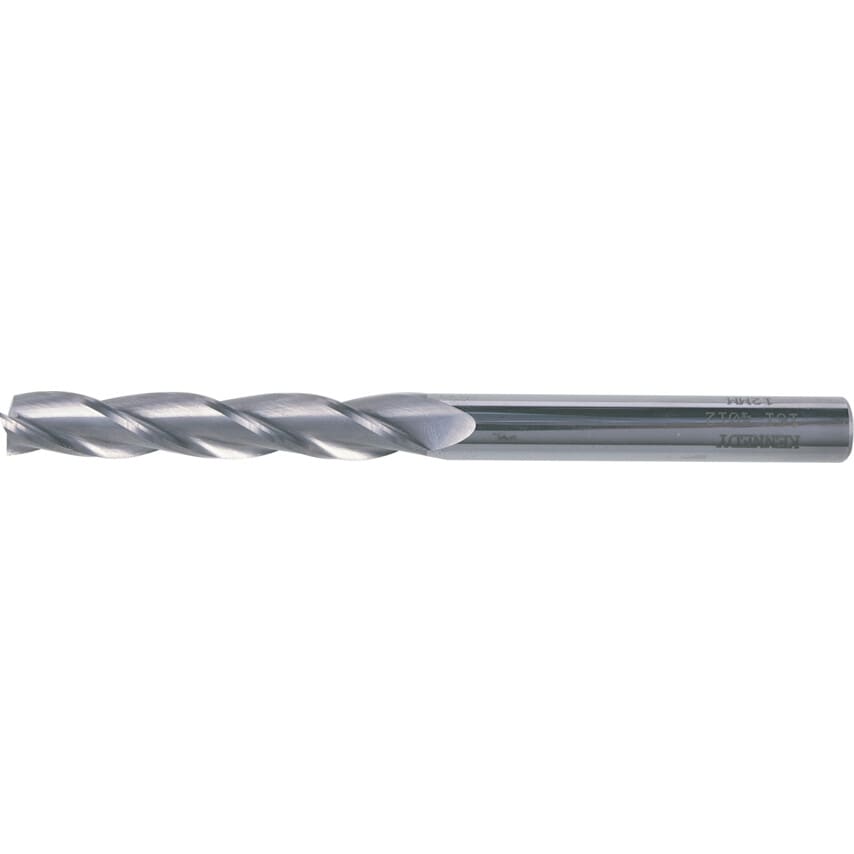

Long Series - 3 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Shank Diameter | 6.0mm |
| Number of Flutes | 3 |
| Milling Application | Plunging | Routing | Slotting |
| Flute Type | Helical |
| Cutter Style | Square End |
| Product Type | End Mills |
| End Mill Type | End Mill |
| Cutter Diameter Tolerance | H10 |
| Coolant Delivery | External |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Shank Type | Plain Round |
| Flute Length | 25.0mm |
| Standards Met | USCTi |
| Milling Cutter Type | End Mills |
| Cutter Diameter | 5.0mm |
| Length Type | Long |
| Overall Length | 75.0mm |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
| Plunge Type | Centre Cutting |
