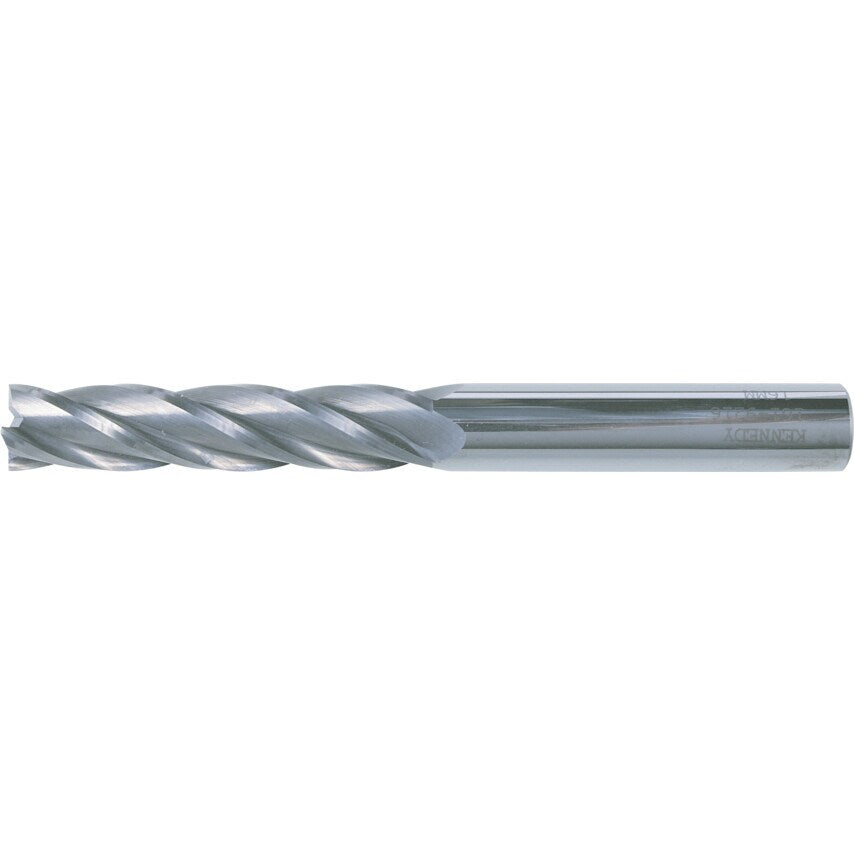

Long Series- 4 Flute - Inch
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Inch Tolerances
Diameter: Over 1/16 ~ up to 1/4. Tolerance: +0.000, -0.002.
Diameter: Over 1/4 ~ up to 1. Tolerance: +0.000, -0.003.
| Flute Length | 1-3/4in |
| Shank Diameter | 3/8in |
| Cutter Diameter Tolerance | H10 |
| Length Type | Long |
| Number of Flutes | 4 |
| Cutter Diameter | 3/8in |
| Coolant Delivery | External |
| Shank Diameter Tolerance | H6 |
| Material | Carbide |
| Plunge Type | Centre Cutting |
| Cutter Style | Square End |
| Overall Length | 4in |
| Milling Cutter Type | End Mills |
| System of Measurement | Inch |
| Flute Type | Helical |
| End Mill Type | End Mill |
| Standards Met | USCTi |
| Shank Type | Plain Round |
| Product Type | End Mills |
| Finish/Coating | Uncoated |
| Cutting Direction | Right Hand |
