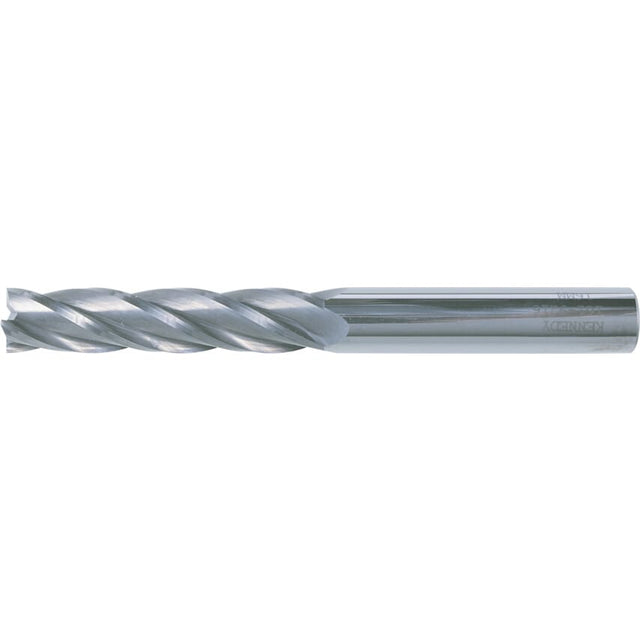

Long Series - 4 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Shank Diameter | 3.0mm |
| Shank Diameter Tolerance | H6 |
| System of Measurement | Metric |
| Number of Flutes | 4 |
| Cutting Direction | Right Hand |
| End Mill Type | End Mill |
| Finish/Coating | Uncoated |
| Cutter Style | Square End |
| Coolant Delivery | External |
| Cutter Diameter Tolerance | H10 |
| Milling Cutter Type | End Mills |
| Material | Carbide |
| Overall Length | 60.0mm |
| Cutter Diameter | 3.0mm |
| Plunge Type | Centre Cutting |
| Shank Type | Plain Round |
| Standards Met | USCTi |
| Flute Type | Helical |
| Length Type | Long |
| Flute Length | 20.0mm |
