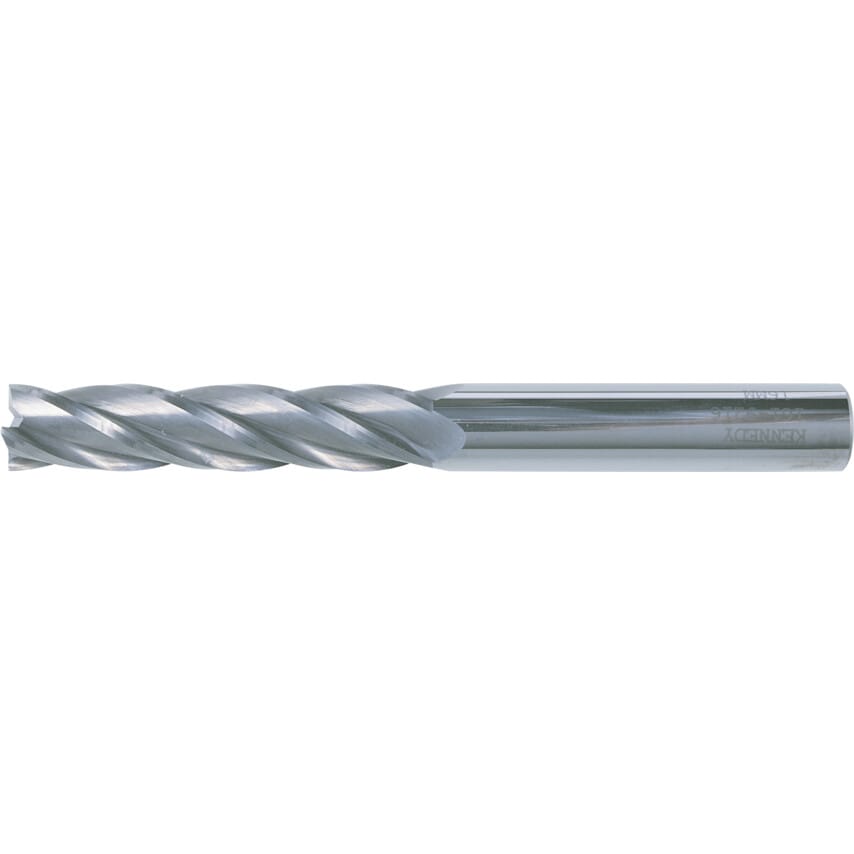

Long Series - 4 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Coolant Delivery | External |
| Cutter Style | Square End |
| Cutting Direction | Right Hand |
| Shank Type | Plain Round |
| Finish/Coating | Uncoated |
| System of Measurement | Metric |
| Overall Length | 150.0mm |
| Milling Cutter Type | End Mills |
| Material | Carbide |
| Number of Flutes | 4 |
| Cutter Diameter Tolerance | H10 |
| Flute Type | Helical |
| Shank Diameter Tolerance | H6 |
| Plunge Type | Centre Cutting |
| Shank Diameter | 16.0mm |
| Length Type | Long |
| Standards Met | USCTi |
| End Mill Type | End Mill |
| Flute Length | 65.0mm |
| Cutter Diameter | 16.0mm |
