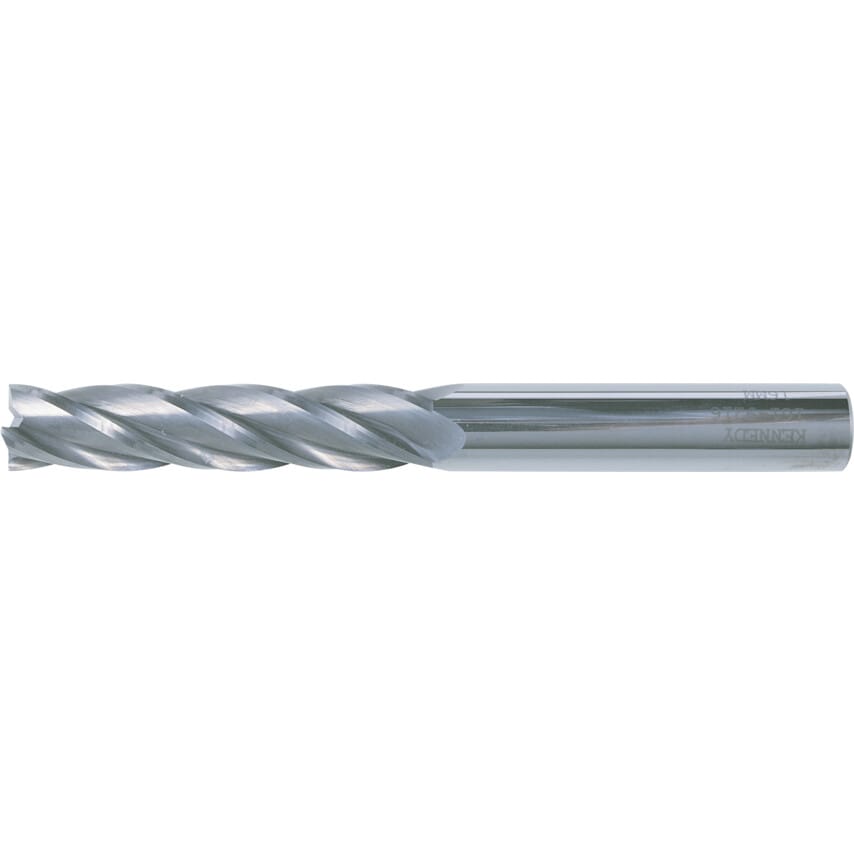

Long Series - 4 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Overall Length | 60.0mm |
| System of Measurement | Metric |
| Coolant Delivery | External |
| Length Type | Long |
| Finish/Coating | Uncoated |
| Shank Diameter Tolerance | H6 |
| Material | Carbide |
| Standards Met | USCTi |
| Cutter Diameter Tolerance | H10 |
| Cutter Diameter | 4.0mm |
| Plunge Type | Centre Cutting |
| Flute Type | Helical |
| Flute Length | 20.0mm |
| Cutting Direction | Right Hand |
| Number of Flutes | 4 |
| Shank Diameter | 4.0mm |
| Milling Cutter Type | End Mills |
| Cutter Style | Square End |
| Shank Type | Plain Round |
| End Mill Type | End Mill |
