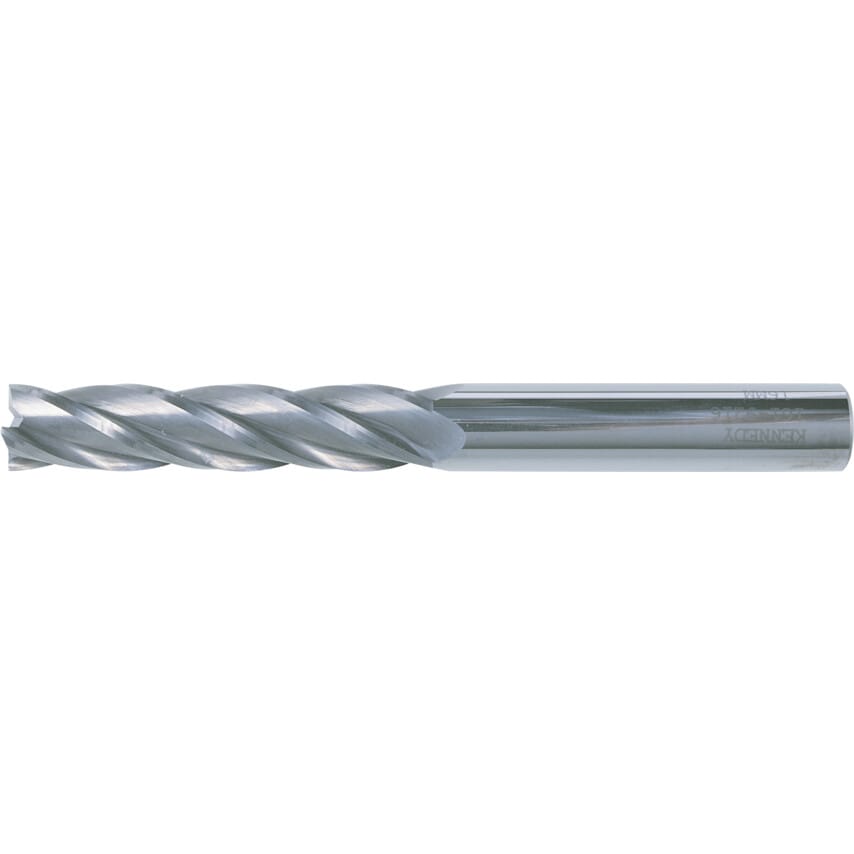

Long Series - 4 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Coolant Delivery | External |
| Shank Diameter Tolerance | H6 |
| End Mill Type | End Mill |
| Flute Length | 30.0mm |
| Cutter Diameter | 6.0mm |
| Overall Length | 75.0mm |
| Cutter Diameter Tolerance | H10 |
| Finish/Coating | Uncoated |
| Plunge Type | Centre Cutting |
| System of Measurement | Metric |
| Length Type | Long |
| Cutter Style | Square End |
| Milling Cutter Type | End Mills |
| Shank Diameter | 6.0mm |
| Material | Carbide |
| Flute Type | Helical |
| Standards Met | USCTi |
| Shank Type | Plain Round |
| Cutting Direction | Right Hand |
| Number of Flutes | 4 |
