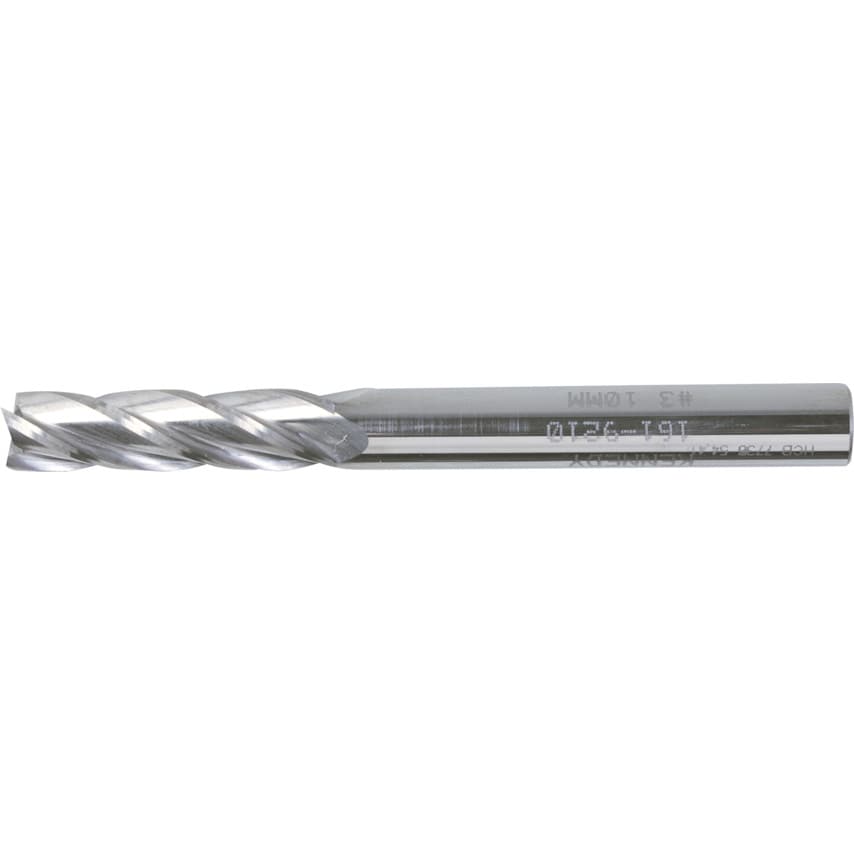

Long Series - 4 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Plunge Type | Centre Cutting |
| Flute Length | 40.0mm |
| Coolant Delivery | External |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance | H6 |
| Length Type | Long |
| Shank Diameter | 10.0mm |
| Milling Cutter Type | End Mills |
| Cutter Diameter Tolerance | H10 |
| Standards Met | USCTi |
| Shank Type | Plain Round |
| Overall Length | 100.0mm |
| Finish/Coating | Uncoated |
| End Mill Type | End Mill |
| Cutter Diameter | 10.0mm |
| Flute Type | Helical |
| Cutter Style | Square End |
| System of Measurement | Metric |
| Number of Flutes | 4 |
| Material | Carbide |
