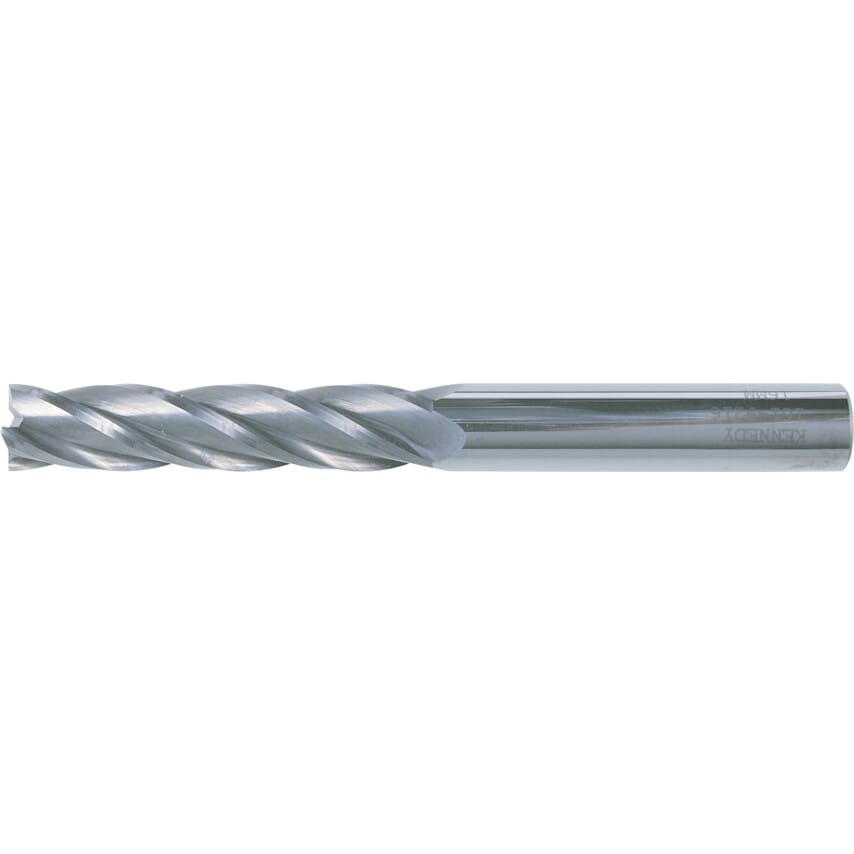

Long Series - 4 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Shank Diameter Tolerance | H6 |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Shank Diameter | 8.00mm |
| Standards Met | USCTi |
| Cutter Diameter | 8.0mm |
| Milling Cutter Type | End Mills |
| Plunge Type | Centre Cutting |
| Flute Length | 30.0mm |
| Cutter Style | Square End |
| Cutter Diameter Tolerance | H10 |
| End Mill Type | End Mill |
| Overall Length | 75.0mm |
| Length Type | Long |
| Coolant Delivery | External |
| Finish/Coating | Uncoated |
| System of Measurement | Metric |
| Flute Type | Helical |
| Shank Type | Plain Round |
| Number of Flutes | 4 |
