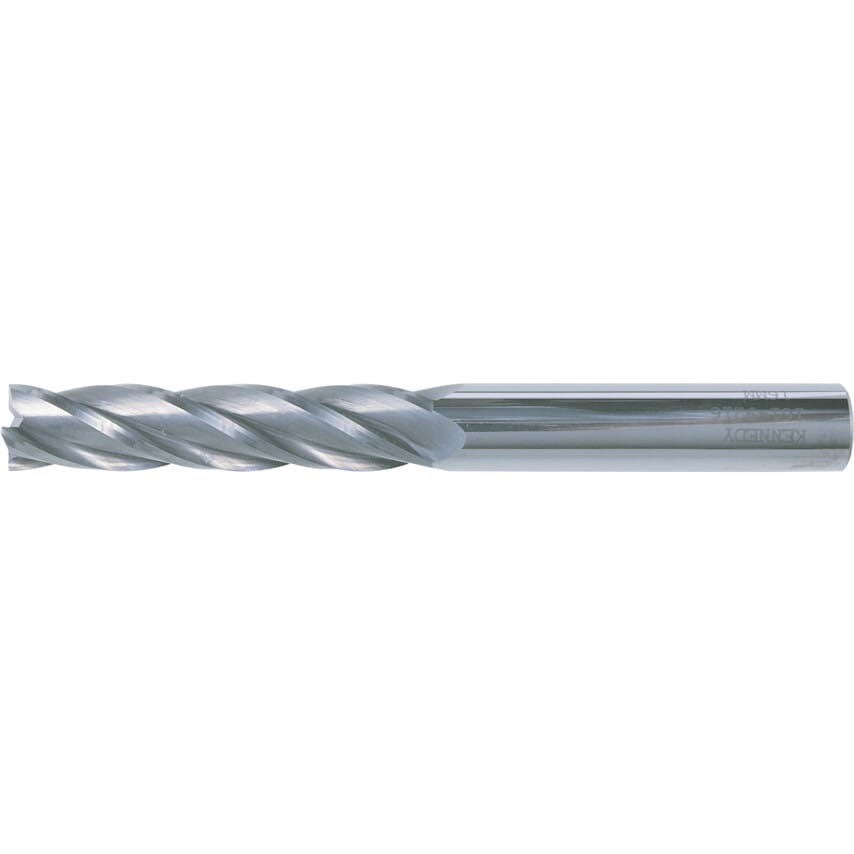

Long Series - 4 Flute - Metric
For optimum performance and maximum swarf removal when plunging, slotting and routing in light alloys, brass, aluminium, non ferrous and other soft materials. Manufactured to USCTi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
| Flute Length | 25.0mm |
| Finish/Coating | Uncoated |
| Cutter Diameter | 5.0mm |
| System of Measurement | Metric |
| End Mill Type | End Mill |
| Milling Cutter Type | End Mills |
| Material | Carbide |
| Overall Length | 75.0mm |
| Shank Diameter | 5.0mm |
| Flute Type | Helical |
| Cutter Style | Square End |
| Standards Met | USCTi |
| Cutting Direction | Right Hand |
| Cutter Diameter Tolerance | H10 |
| Length Type | Long |
| Shank Type | Plain Round |
| Coolant Delivery | External |
| Number of Flutes | 4 |
