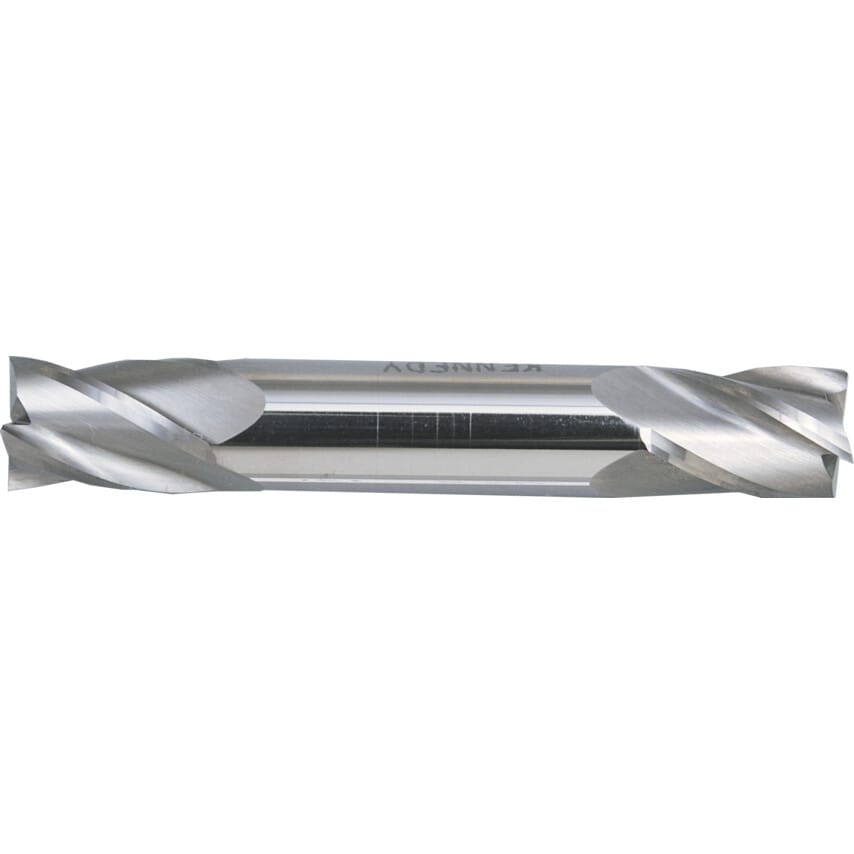

Double Ended - Regular Series - Metric
4 Flute
For maximum strength when milling harder materials where rapid swarf removal is not needed. Four flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting. Manufactured to Ansi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Length Type | Regular |
| Number of Cutting Ends | 2 |
| Helix Angle | 30\u00b0 |
| Material Application | Alloy Steel | Aluminium | Carbon Steel | Cast Iron | Copper | Hardened Steel | Stainless Steels |
| Cutter Diameter Tolerance | H10 |
| Shank Diameter Tolerance | H6 |
| Cutter Diameter | 8mm |
| Number of Flutes | 4 |
| Shank Type | Plain Round |
| Shank Diameter | 8mm |
| Finish/Coating | Uncoated |
| Milling Cutter Type | End Mills |
| Cutter Style | Square End |
| Flute Type | Helical |
| Coolant Delivery | External |
| Reach Type | Standard Neck |
| Material | Carbide |
| Milling Application | Plunging | Routing | Slotting |
| MFR Part No. | 14M |
| Plunge Type | Centre Cutting |
| Flute Length | 12mm |
| Standards Met | ANSI |
| Overall Length | 63mm |
| End Mill Type | End Mill |
