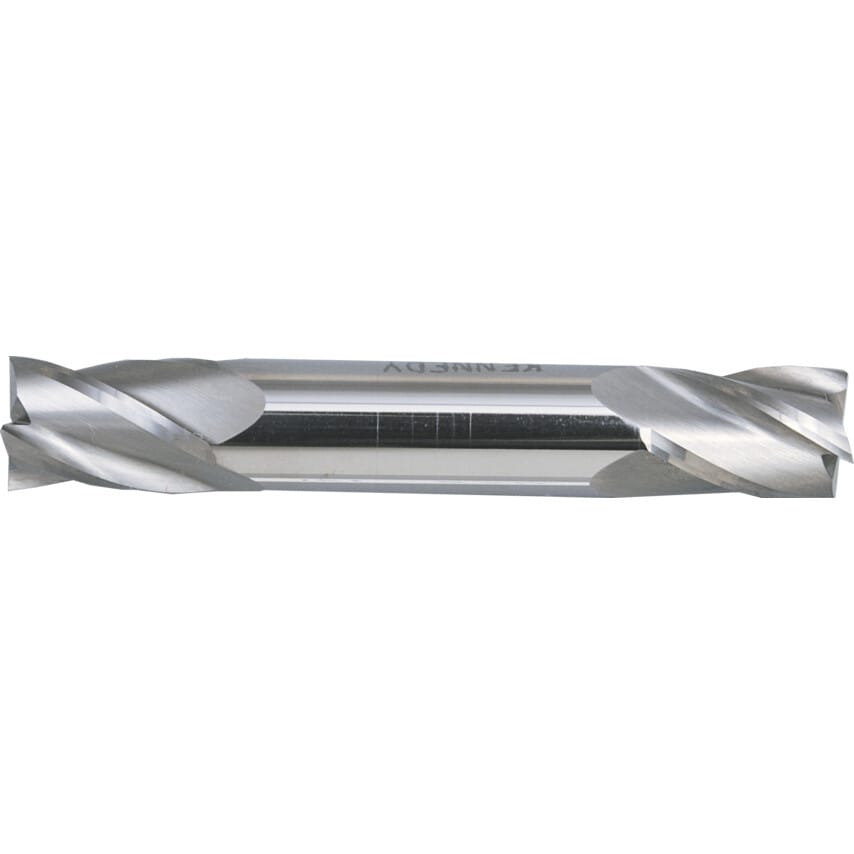

Double Ended - Regular Series - Metric
4 Flute
For maximum strength when milling harder materials where rapid swarf removal is not needed. Four flute milling cutters have one of the strongest tooth structures available in solid cutters. Centre cutting. Manufactured to Ansi Standards.
Metric Tolerances
Diameter: Over 1.00 ~ up to 6.00. Tolerance: +0.000, -0.050.
Diameter: Over 6.00 ~ up to 25.00. Tolerance: +0.000, -0.080.
| Reach Type | Standard Neck |
| Flute Type | Helical |
| Number of Cutting Ends | 2 |
| Milling Application | Plunging | Routing | Slotting |
| Material Application | Alloy Steel | Aluminium | Carbon Steel | Cast Iron | Copper | Hardened Steel | Stainless Steels |
| Shank Type | Plain Round |
| MFR Part No. | E599911130 |
| Finish/Coating | Uncoated |
| Material | Carbide |
| Number of Flutes | 4 |
| Milling Cutter Type | End Mills |
| Helix Angle | 30\u00b0 |
| Helix Direction | Right Hand |
| Shank Diameter | 3mm |
| Plunge Type | Centre Cutting |
| Shank Diameter Tolerance | H6 |
| Length Type | Regular |
| Cutter Diameter | 3mm |
| Cutting Direction | Right Hand |
| Flute Length | 6mm |
| Coolant Delivery | External |
| Standards Met | ANSI |
| Overall Length | 38mm |
| Cutter Style | Square End |
| Cutter Diameter Tolerance | H10 |
| End Mill Type | End Mill |
